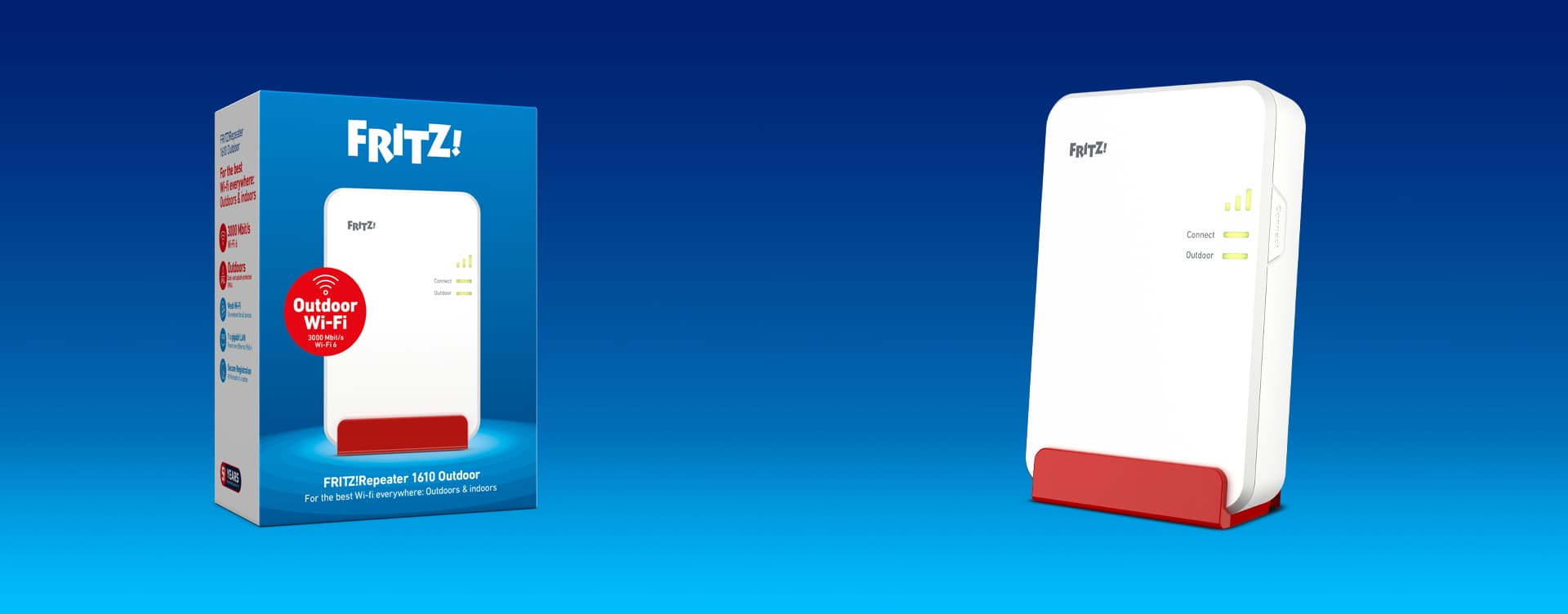

FRITZ!Repeater 1610 Outdoor

FRITZ!Repeater 1610 Outdoor

Maximum flexibility indoors and outdoors

Der FRITZ!Repeater 1610 Outdoor erweitert dein Heimnetz um leistungsstarkes WLAN – genau dort, wo du es brauchst. Ob auf Terrasse, Balkon oder im Garten: Über eine LAN-The FRITZ!Repeater 1610 Outdoor extends your home network with powerful Wi-Fi – exactly where you need it. Whether on the patio, the balcony, or in the garden: A LAN connection incorporates the extender into your FRITZ! Mesh and reliably ensures more Wi-Fi outdoors.

The splash- and dust-proof housing is IP54-certified and allows the FRITZ!Repeater 1610 Outdoor to be set up or installed near a window or in a protected outdoor area.

This means you can also enjoy fast internet, smooth streaming and excellent reception outdoors – fully automated and with maximum range.

More Wi-Fi everywhere - with Wi-Fi 6

The Wi-Fi 6 standard meets the needs of networks with the constantly increasing numbers of wireless devices. From smartphones, notebooks and speakers to 4K smart TVs: more and more devices are being used simultaneously on Wi-Fi. Wi-Fi 6 optimally integrates every device into the home network, ensuring that you always have a reliable data connection.

The FRITZ!Repeater 1610 Outdoor supports Wi-Fi 6 in the 2.4-GHz and 5-GHz bands, the latter including even 160-MHz-wide Wi-Fi channels that enable speeds of up to 3000 Mbit/s.

Mesh Wi-Fi with FRITZ! – the intelligent Wi-Fi

Wi-Fi, but smart: In the Mesh the FRITZ! devices work together so that you can enjoy your Wi-Fi. The Mesh technology steers your devices intelligently into the best-suited Wi-Fi band or to the next wireless access point.

From the Wi-Fi network of a FRITZ!Box all the way to a large Mesh Wi-Fi with multiple distributed stations: With Mesh from FRITZ!, benefit from the best Wi-Fi in small and large environments.

Power and data with just one cable

The FRITZ!Repeater 1610 Outdoor is powered using Power over Ethernet (PoE+). This way the extender can be installed flexibly, for example in hallways or secluded rooms.

The PoE+ power adapter included in delivery also has an additional gigabit LAN port to integrate it into the home network or connect wired devices. This makes the FRITZ!Repeater 1610 Outdoor the optimal all-rounder for demanding Wi-Fi scenarios in the home network and professional environments.

Can be use indoors and in protected outdoor areas(IP54)
Powerful Wi-Fi with Wi-Fi 6up to 3 Gbit/s
1 x gigabit LANfor wired networking and Power over Ethernet (PoE+)
Extends the home networkwith Mesh Wi-Fi

Technical specifications

Interfaces

  • Wi-Fi 6 up to 3000 Mbit/s with 2.4 and 5 GHz
  • 1x Power over Ethernet (PoE+), power supply via the LAN port
  • 1 x gigabit LAN on PoE+ power adapter

Features

  • A high-performance wireless extender for wide coverage and high data throughput
  • Wi-Fi up to 2400 Mbit/s (5 GHz) and 600 Mbit/s (2.4 GHz)
  • IP54-certified housing (protected outdoor areas)
  • Can also be connected to a router via Wi-Fi (only for indoor use)
  • Two radio units for optimal supply of multiple wireless devices concurrently
  • Extends your home network with Mesh Wi-Fi
  • Compatible with all wireless routers with the IEEE 802.11a/g/n/ac/ax Wi-Fi standard, perfectly tailored to the FRITZ!Box
  • Can also be connected to a router via network cable (LAN bridge)
  • Encryption with WPA3/2
  • Easy connection at the touch of a button (WPS)
  • Display shows connection quality and status
  • Intuitive browser- and app-based user interface

Package Contents

  • FRITZ!Repeater 1610 Outdoor
  • PoE power adapter including gigabit LAN connector
  • 2 network cables (2.5m each, UV-resistant)
  • Router bracket for outdoors (or for ceiling mounting)
  • Router bracket for indoors
  • 2 adhesive pads
  • 5 self-adhesive cable clips
  • 1 mounting screw
  • Quick guide
  • FRITZ! Notes

Device properties

  • Dimensions without router bracket (W x H x D): approx. 111 x 163 x 31 mm
  • Dimensions with red router bracket for indoors: (W x H x D): approx. 111 x 166 x 55 mm
  • Dimensions with white router bracket for outdoors: (W x H x D): approx. 111 x 170 x 42 mm
  • Average energy consumption: 4 W
  • Operating temperature: -10°C to 40°C
  • UV-resistant housing


Product Version Number

  • 20003166 FRITZ!Repeater 1610 Int. Edition
