Product comparison

Select your Product Category:

To the DSL Category To the Fiber Optic Category To the Cable Category

To the Mobile Network Category To the Modem Category To the Mesh Category

To the Mesh Set Category To the Smart Home Category To the Phone Category

FRITZ! at a Glance

To the 'FRITZ! at a Glance' Product Comparison (PDF)

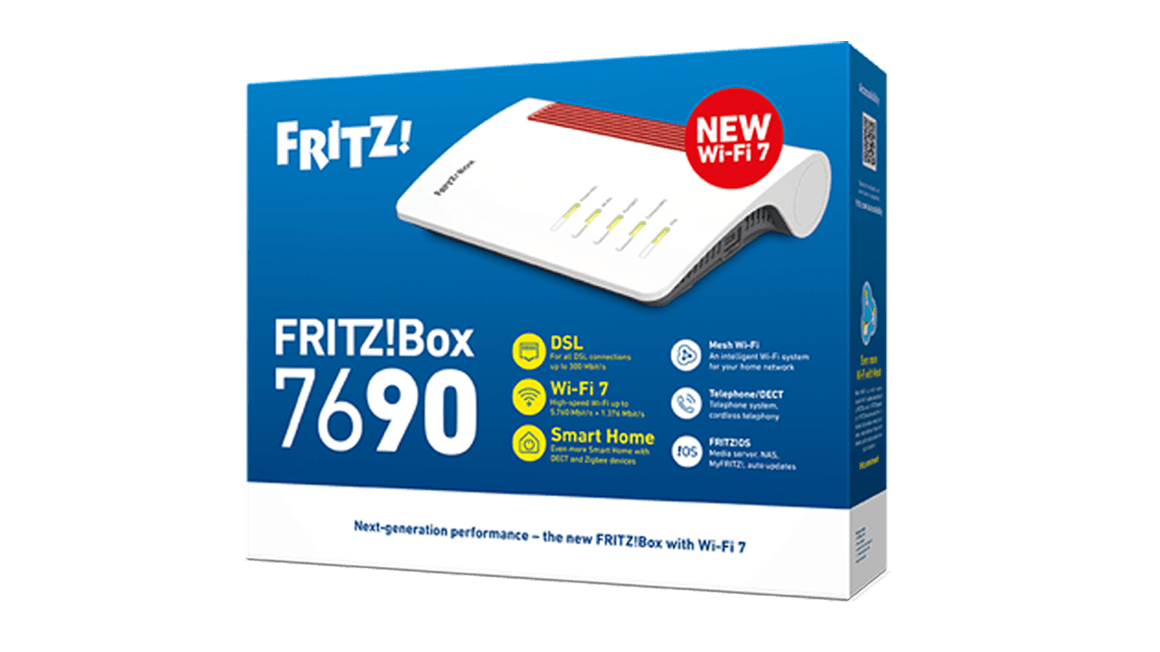

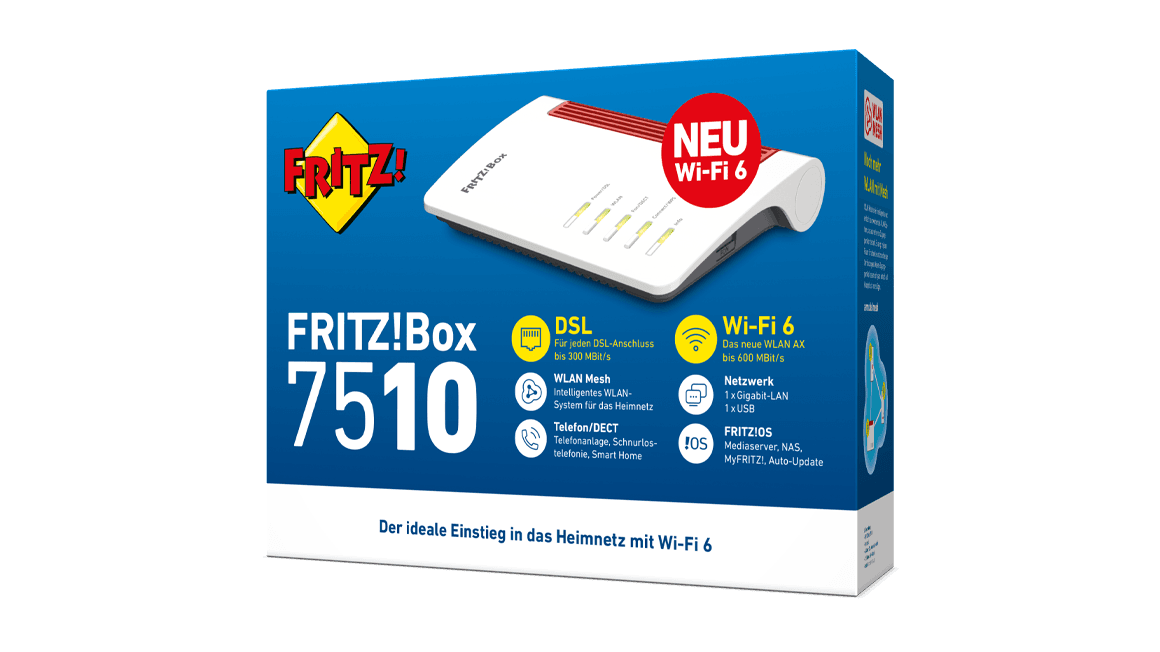

Comparison of FRITZ!Box DSL Models

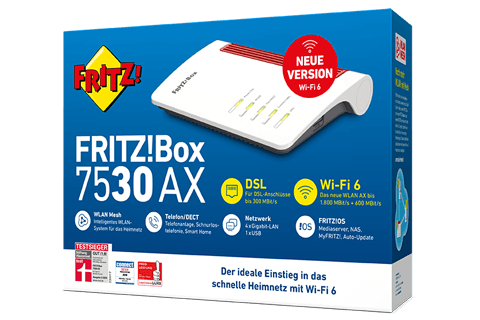

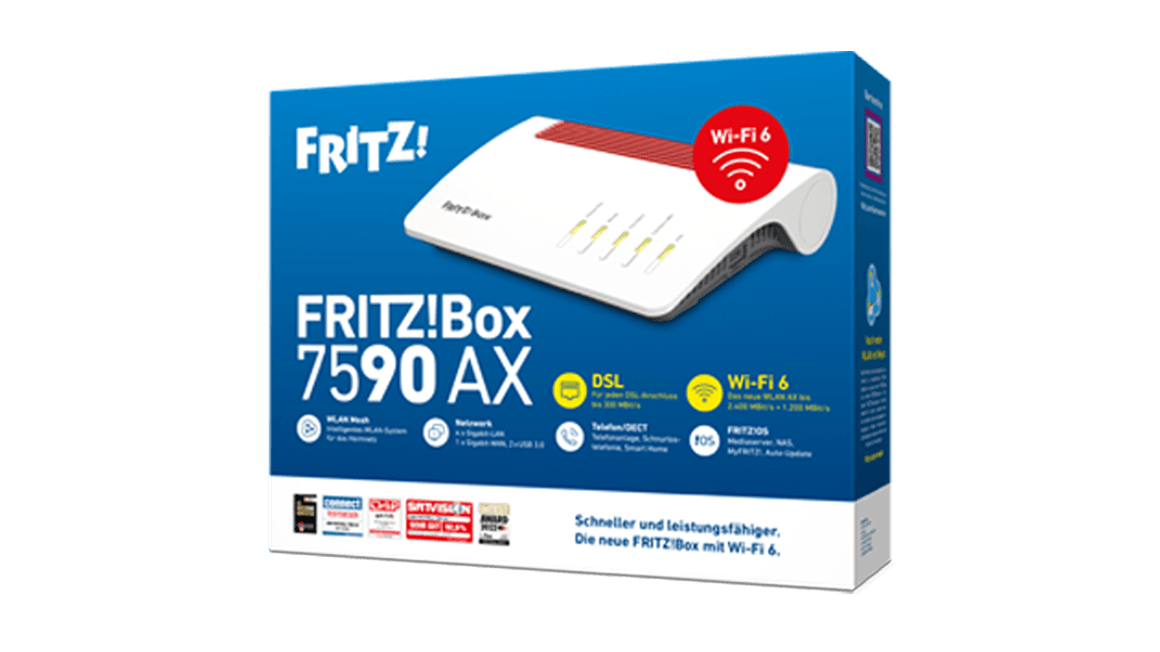

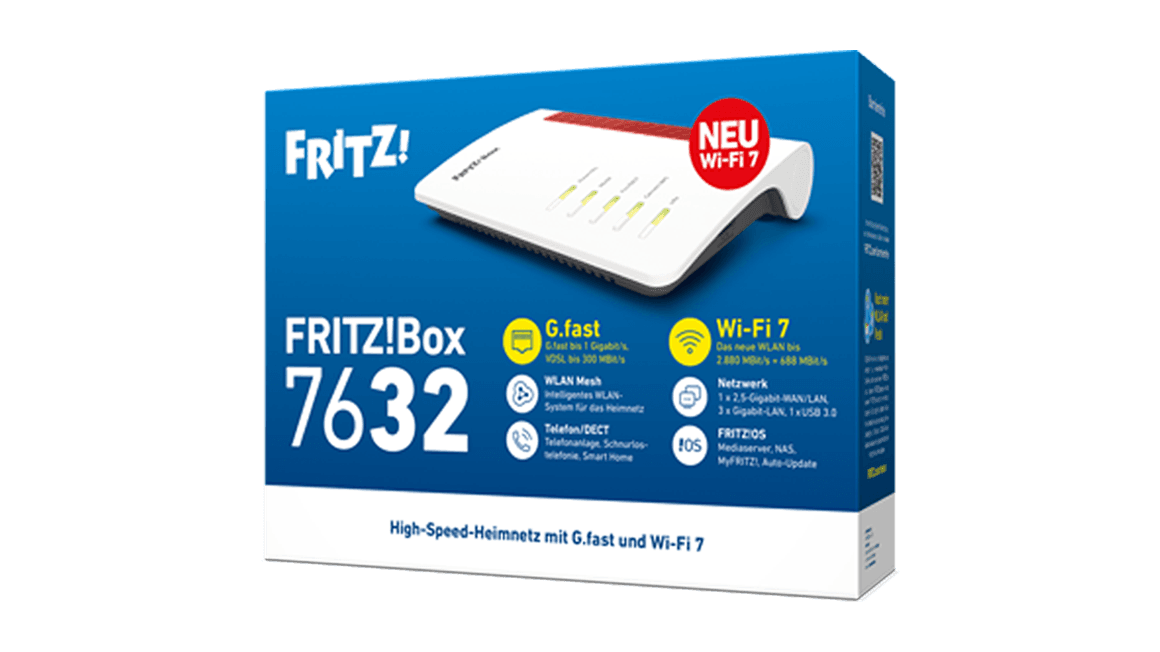

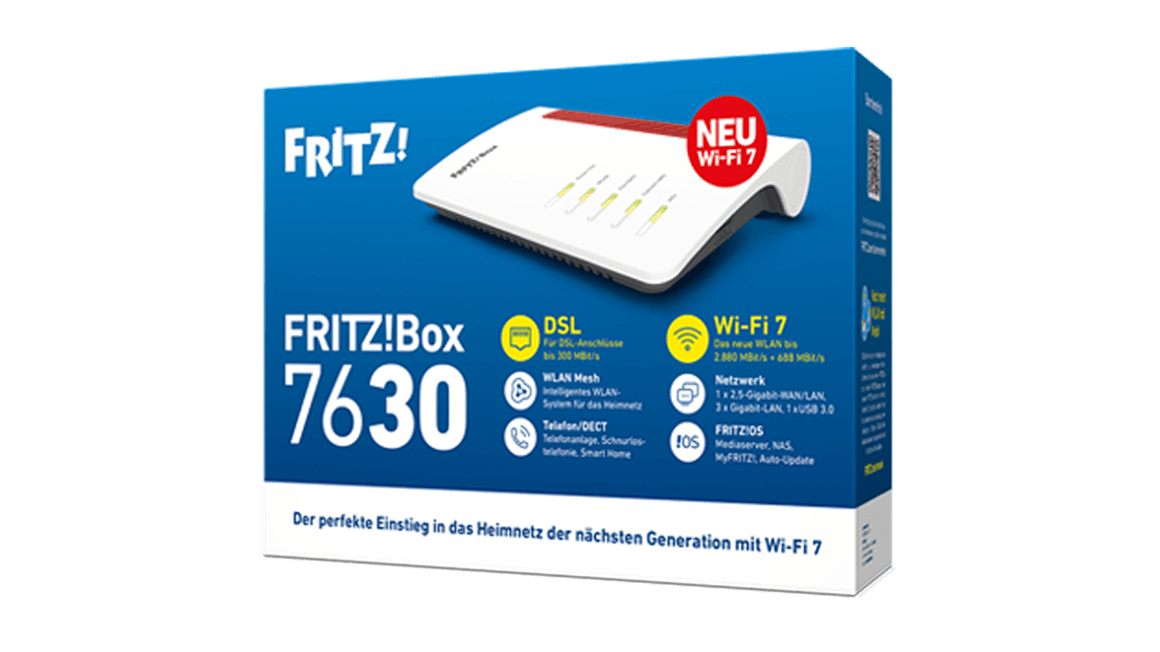

	FRITZ!Box 7690	FRITZ!Box 7682	FRITZ!Box 7632	FRITZ!Box 7630	FRITZ!Box 7590 AX	FRITZ!Box 7530 AX	FRITZ!Box 7510
Wi-Fi/Mesh	Wi-Fi 7	Wi-Fi 7	Wi-Fi 7	Wi-Fi 7	Wi-Fi 6	Wi-Fi 6	Wi-Fi 6
Smart home hub	DECT + Zigbee	DECT	DECT	DECT	DECT	DECT	DECT
Media server/NAS
2,5-gigabit LAN port	2	2	1	1	–	–	–
1-gigabit LAN port	2	2	3	3	4	4	1
USB port	1	1	1	1	2	1	1
DECT base
HD telephony
Phone system
MIMO data streams	4 x 4	4 x 4	2 x 2	2 x 2	4 x 4	4 x 4 at 5 GHz, 2 x 2 at 2,4 GHz	2 x 2
Max. Wi-Fi	7,1 Gbit/s	6,9 Gbit/s	3,6 Gbit/s	3,6 Gbit/s	3,6 Gbit/s	2.400 Mbit/s	600 Mbit/s
Band (GHz)	5 & 2,4	5 & 2,4	5 & 2,4	5 & 2,4	5 & 2,4	5 & 2,4	2,4
WAN (Gbit/s)	2,5 Gbit/s	2,5 Gbit/s	2,5 Gbit/s	2,5 Gbit/s	1 Gbit/s	–	–
G.fast	–			–	–	–	–
VDSL/Supervectoring
ADSL/ADSL2+	–	–	–	–
IP-based
Phone (analogue)	2	2	1	1	2	1	1

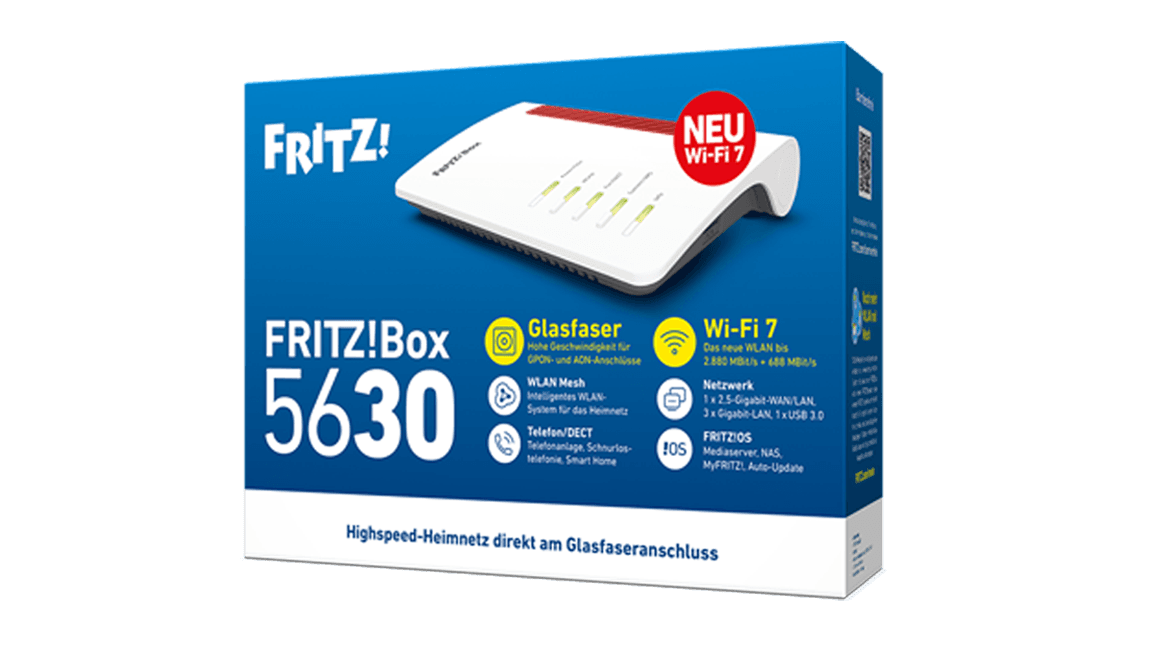

Comparison of FRITZ!Box Fiber Optic Models

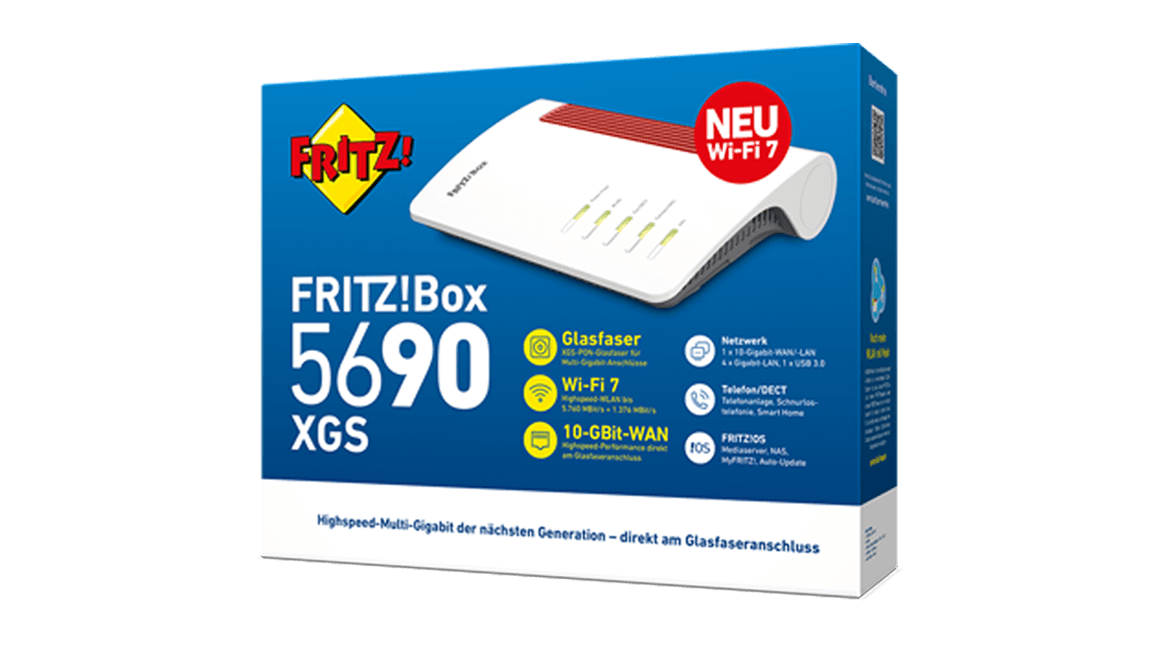

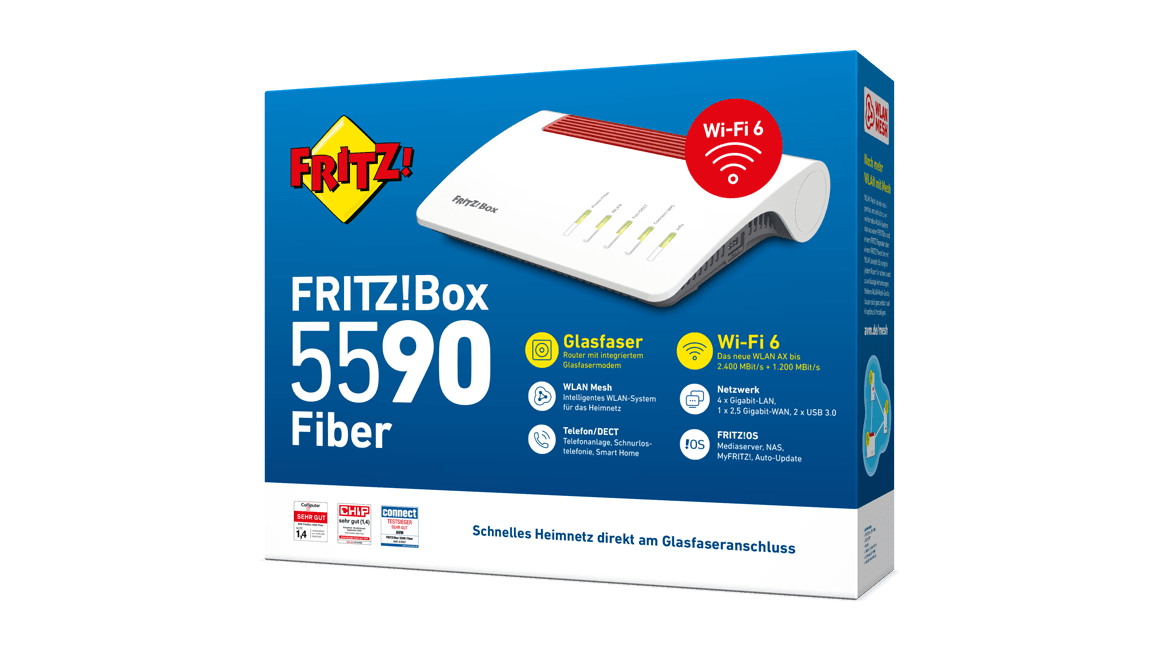

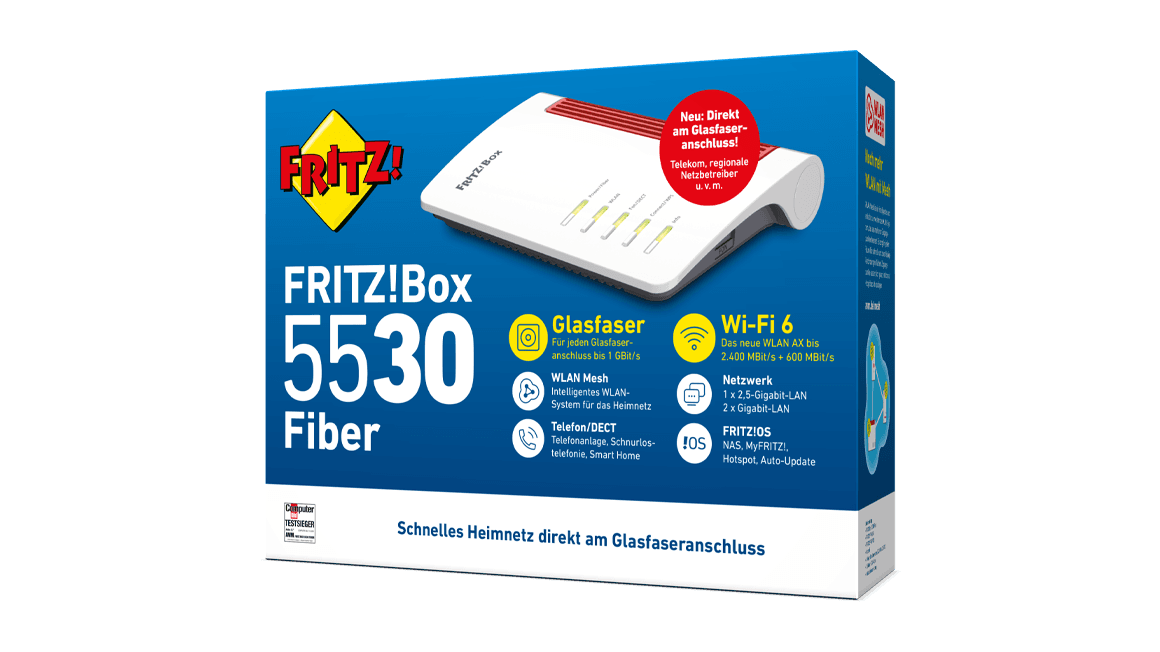

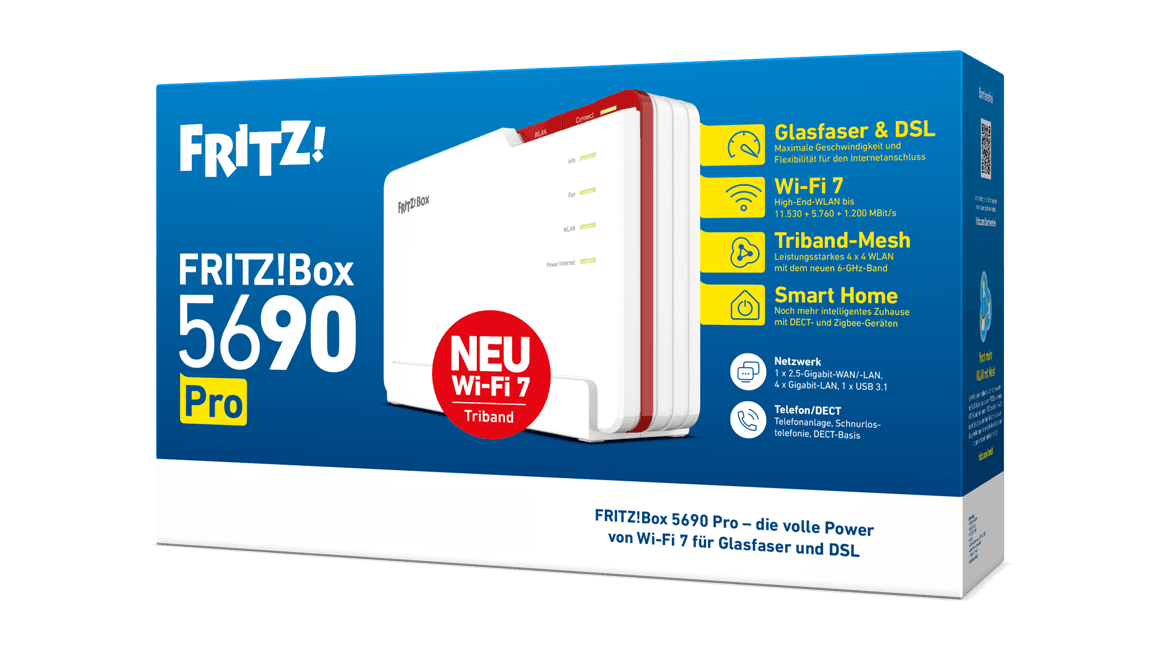

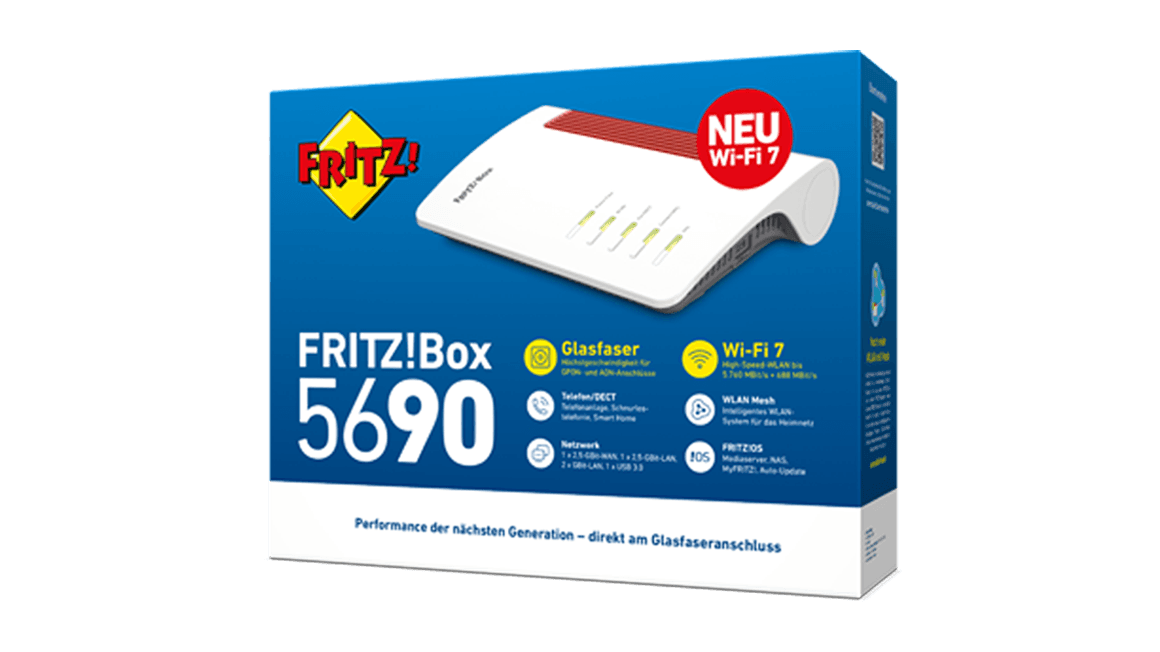

	FRITZ!Box 5690 Pro	FRITZ!Box 5690 XGS	FRITZ!Box 5690	FRITZ!Box 5630	FRITZ!Box 5590 Fiber	FRITZ!Box 5530 Fiber
AON / GPON / XGS-PON	–	––	–	–
DSL		–	–	–	–	–
WAN (Gbit/s)	2,5 GBit/s	10 Gbit/s	2,5 GBit/s	2,5 Gbit/s	2,5 Gbit/s	via LAN 1
Wi-Fi/Mesh	Wi-Fi 7/Tri-band	Wi-Fi 7	Wi-Fi 7	Wi-Fi 7	Wi-Fi 6	Wi-Fi 6
Band (GHz)	6 & 5 & 2,4	5 & 2,4	5 & 2,4	5 & 2,4	5 & 2,4	5 & 2,4
Max. Wi-Fi	18 Gbit/s	7,1 Gbit/s	6,4 GBit/s	3,6 Gbit/s	3,6 Gbit/s	3 Gbit/s
MIMO data streams	4 x 4	4 x 4	4 x 4 bei 5 GHz, 2 x 2 bei 2,4 GHz	2 x 2 at 5 GHz, 2 x 2 at 2,4 GHz	4 x 4	2 x 2
Phone system
IP-based
HD telephony
DECT base
Media server/NAS						–
WAN/LAN port	1	1	1	1	1	–
2,5-gigabit LAN port	–	–	1	1	–	1
1-gigabit LAN port	4	4	2	3	4	2
Smart home hub	DECT + Zigbee	DECT	DECT	DECT	DECT	DECT
USB port	1	1	1	1	2	–
Phone (analogue)	1	1	1	1	2	1

Comparison of FRITZ!Box Cable Models

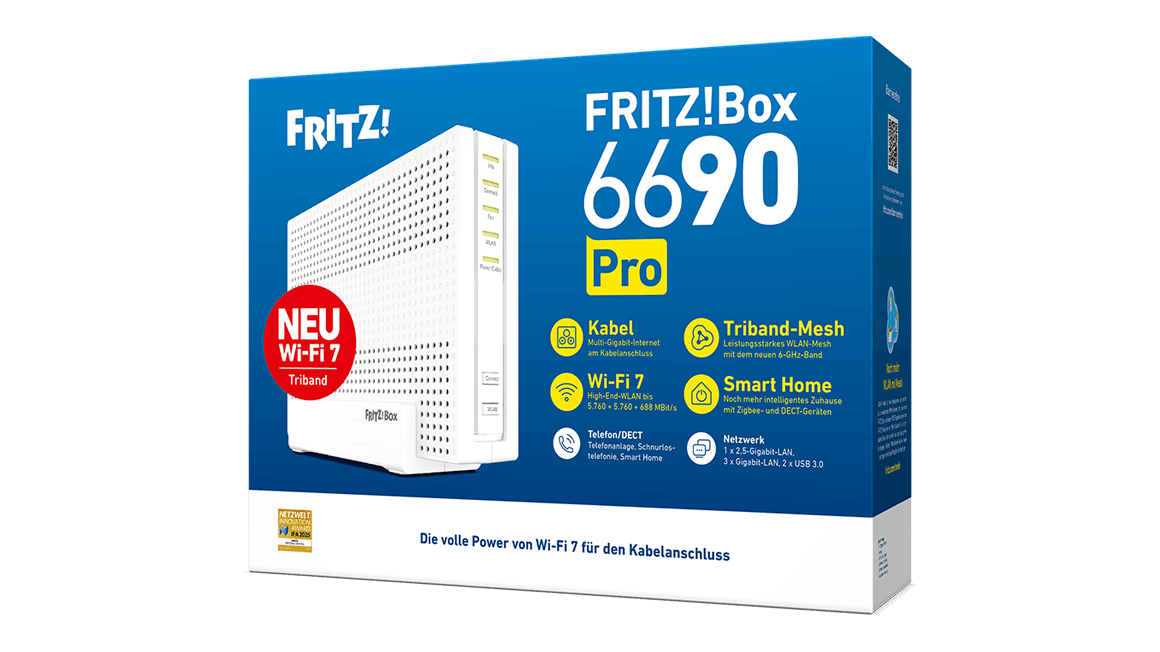

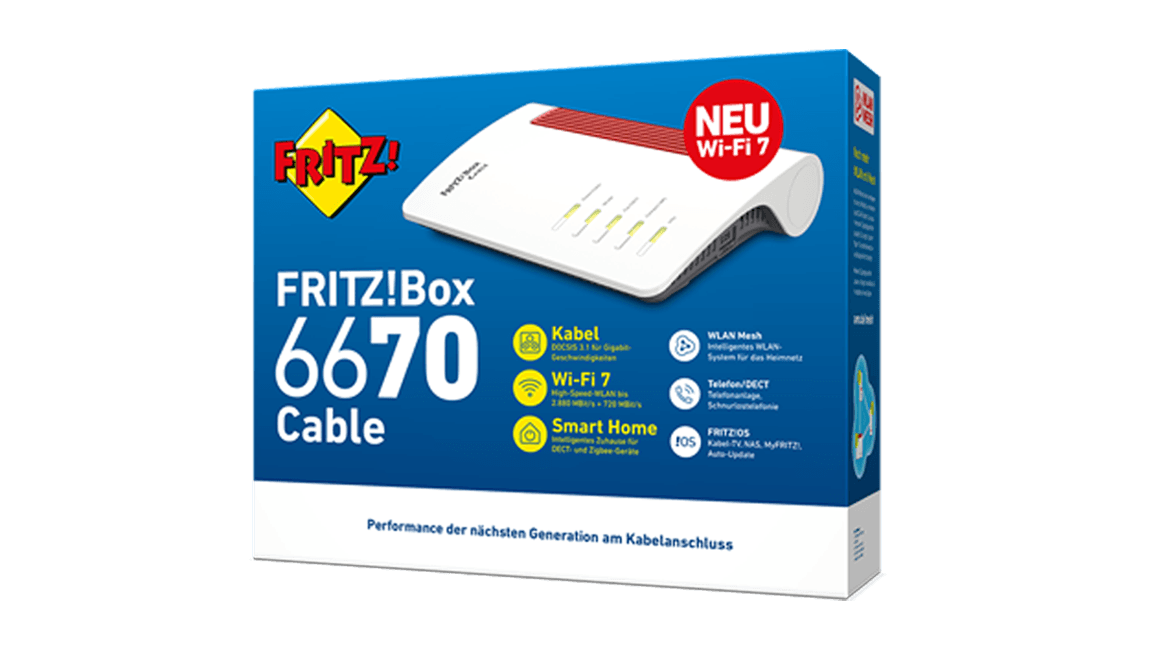

	FRITZ!Box 6690 Pro	FRITZ!Box 6670 Cable
Band (GHz)	6 & 5 & 2,4	5 & 2,4
Media server/NAS
WAN/LAN port	–	–
1-gigabit LAN port	3	4
USB port	2	1
2,5-gigabit LAN port	1	1
Smart home hub	DECT + Zigbee	DECT + Zigbee
DECT base
HD telephony
IP-based
Phone system
MIMO data streams	4 x 4	2 x 2
Max. Wi-Fi	6 Gbit/s	3,5 GBit/s
Wi-Fi/Mesh	Wi-Fi 6	Wi-Fi 7
WAN (Gbit/s)	–	–
DOCSIS	3.1	3.1
Cable
Phone (analogue)	2	1

Comparison of FRITZ!Box Mobile Network Models

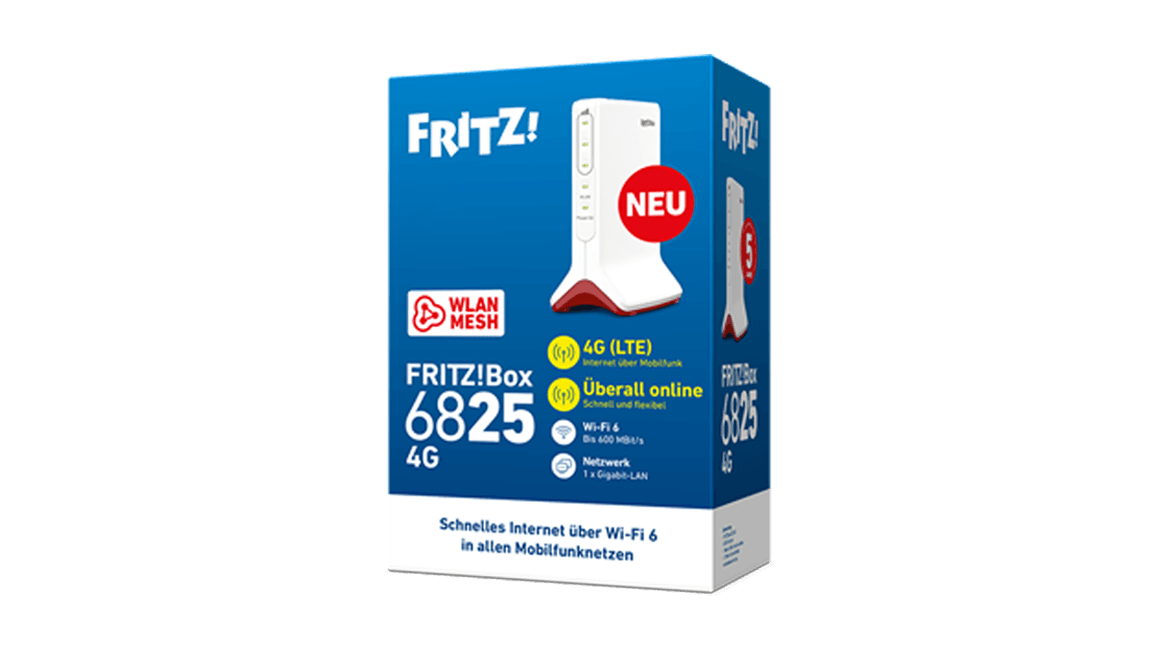

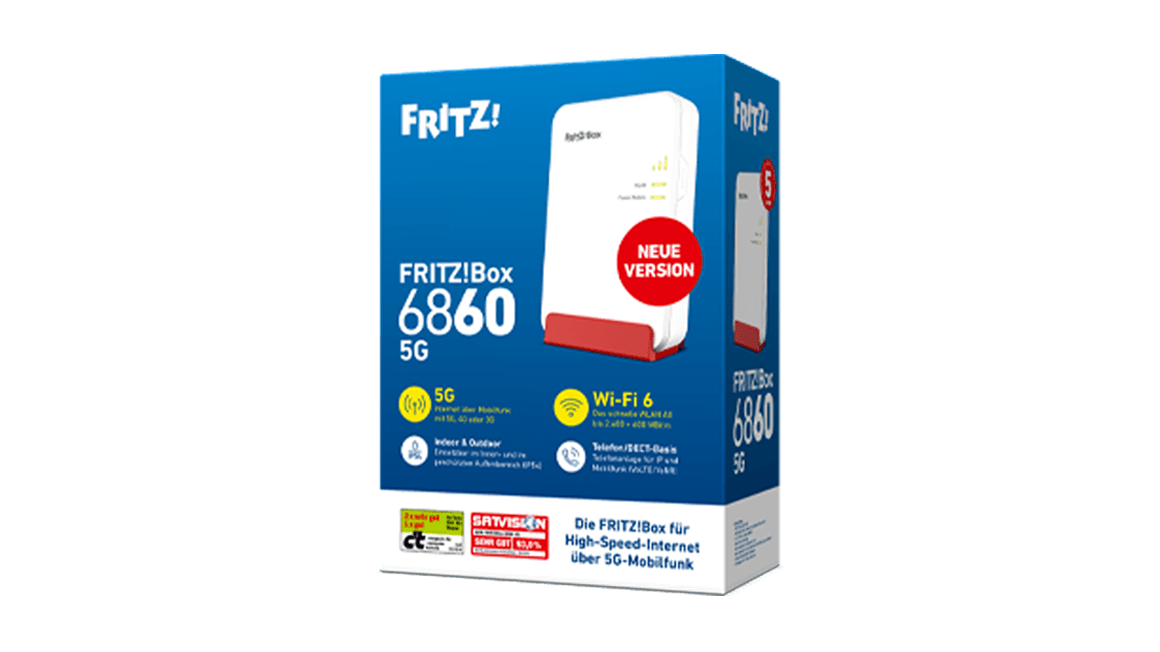

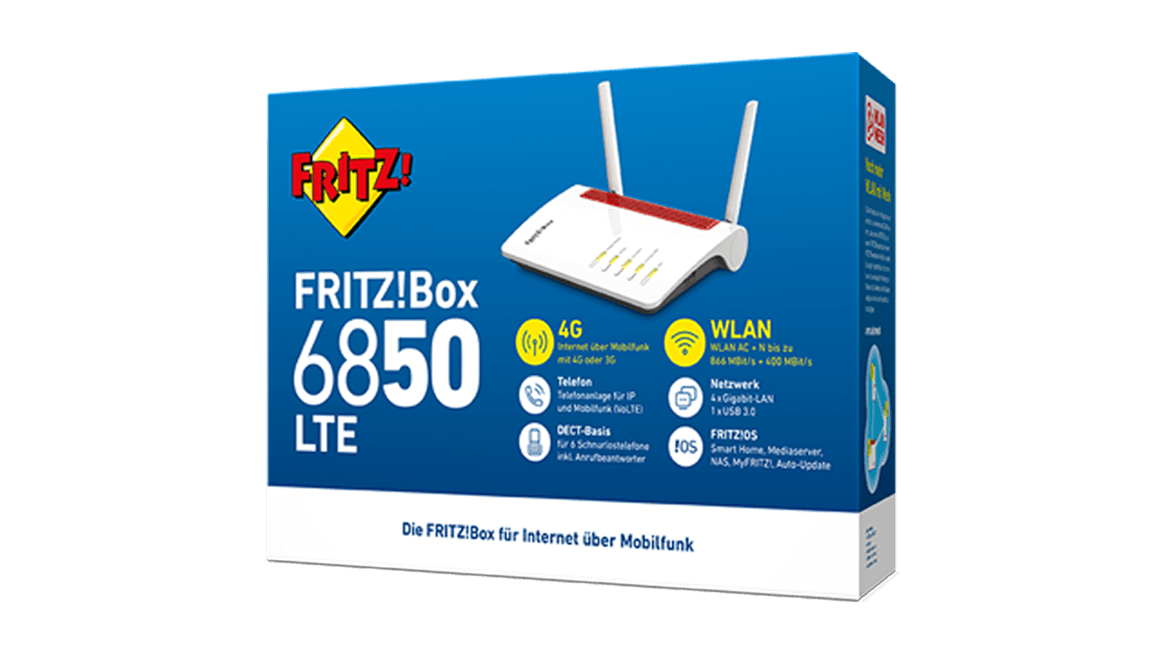

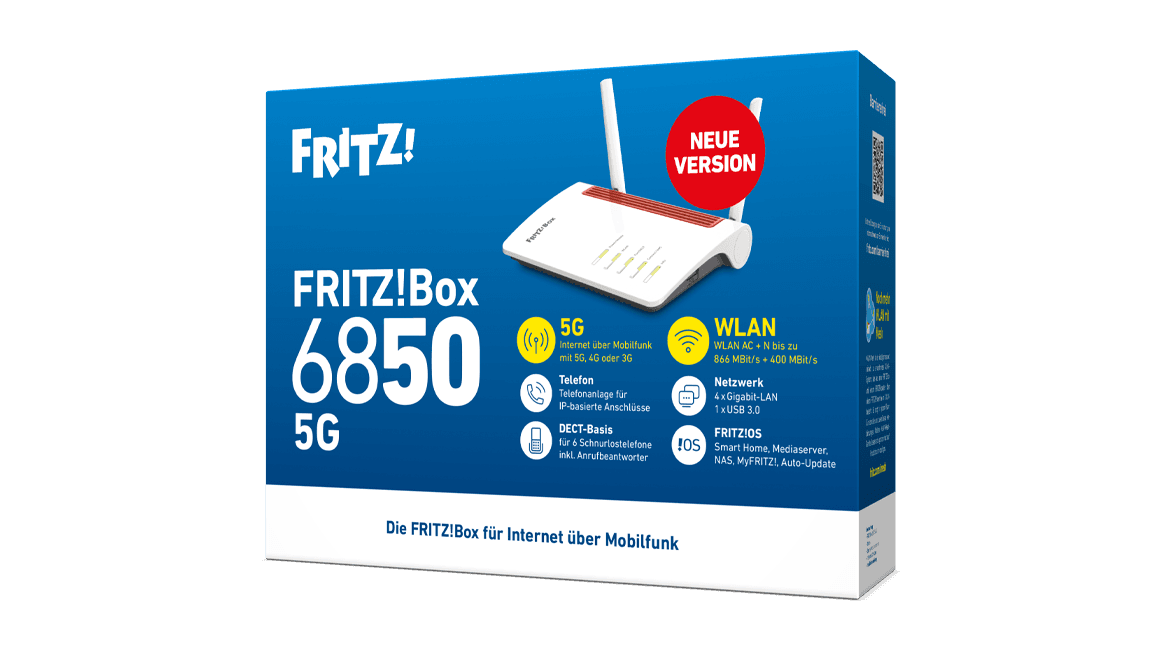

	FRITZ!Box 6860 5G v2	FRITZ!Box 6850 LTE	FRITZ!Box 6850 5G v2	FRITZ!Box 6850 4G	FRITZ!Box 6825 4G
Mobile network	5G, LTE, UMTS	LTE, UMTS	5G, LTE, UMTS	LTE, UMTS	LTE, UMTS
Indoor / Outdoor / PoE		––	––	––	––
Wi-Fi/Mesh	Wi-Fi 6	Wi-Fi 5	Wi-Fi 5	Wi-Fi 5	Wi-Fi 6
Band (GHz)	5 & 2,4	5 & 2,4	5 & 2,4	5 & 2,4	2,4
Max. Wi-Fi	3 GBit/s	1.266 MBit/s	1.266 MBit/s	1.266 MBit/s	600 MBit/s
MIMO data streams	2 x 2	2 x 2	2 x 2	2 x 2	2 x 2
Phone system					–
Mobile/IP-based					–
DECT base					–
Smart home hub	DECT	DECT	DECT	DECT	–
WAN/LAN port	–	–	–	–	–
2,5-gigabit LAN port	–	–	–	–	–
1-gigabit LAN port	1	4	4	4	1
USB port	–	1	1	1	–
Phone (analogue)	–	1	1	1	–
Media server/NAS	–				–
HD telephony					–

Comparison of FRITZ!Box Modem Models

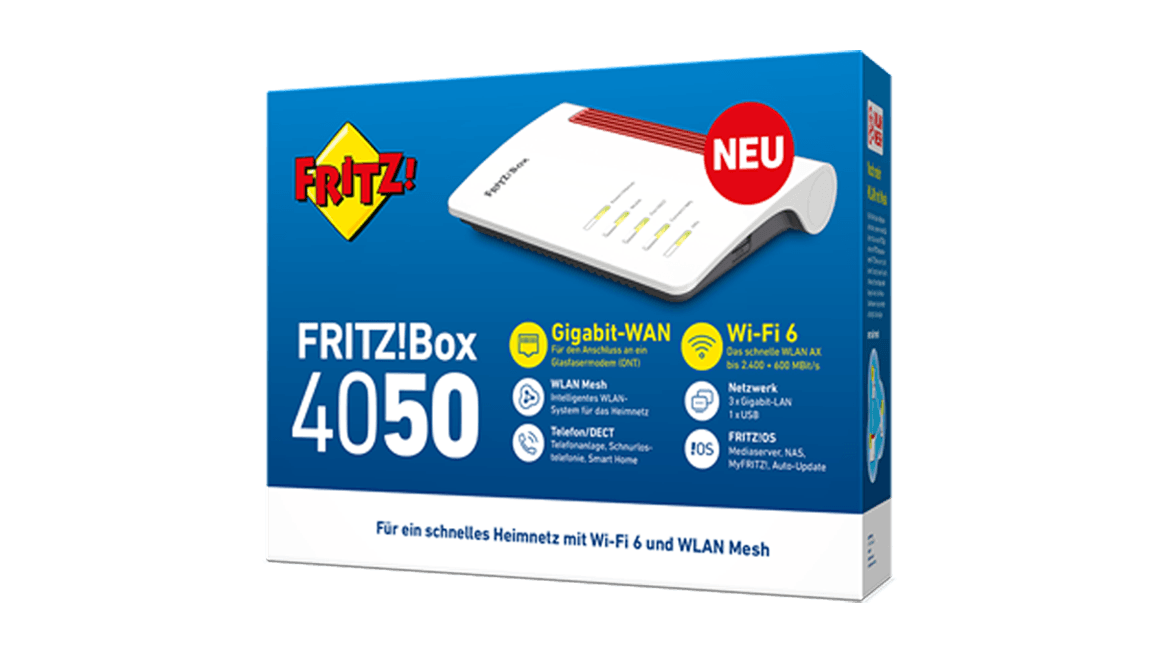

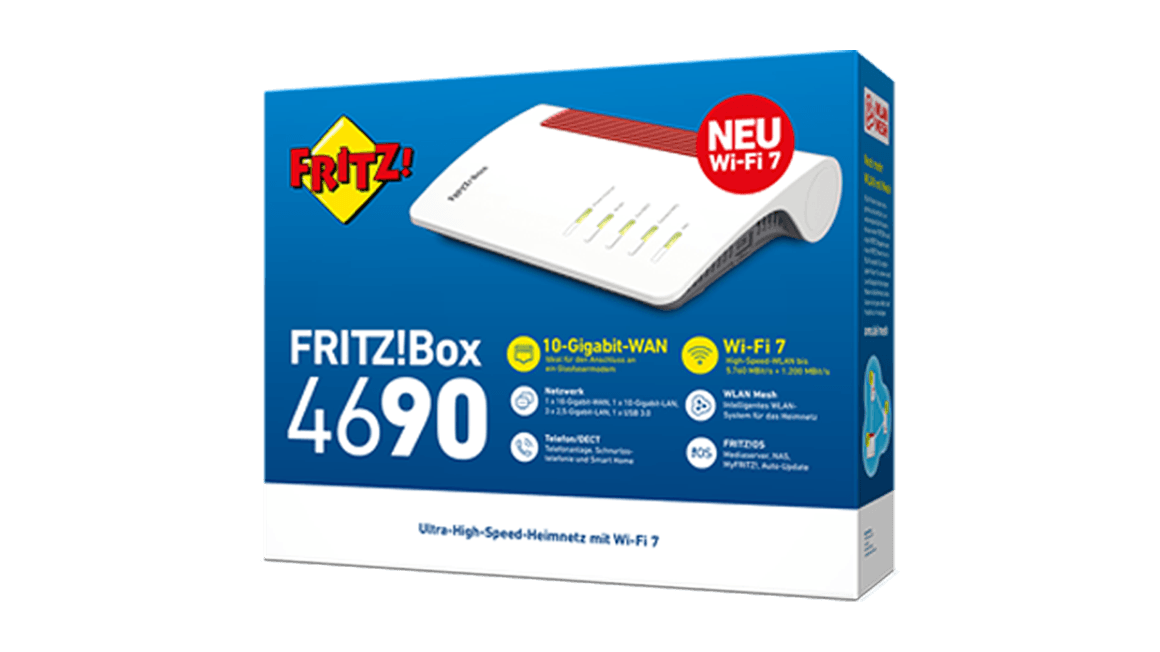

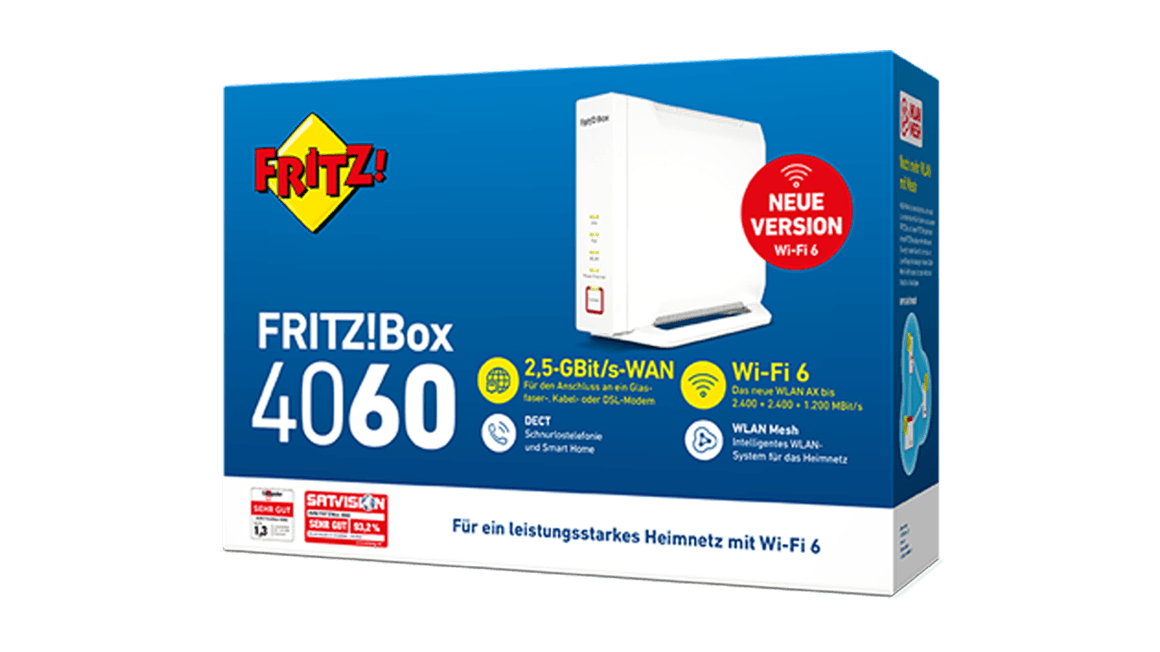

	FRITZ!Box 4690	FRITZ!Box 4630	FRITZ!Box 4060	FRITZ!Box 4050
WAN	10 GBit/s	2,5 GBit/s	2,5 GBit/s	1,0 GBit/s
Wi-Fi/Mesh	Wi-Fi 7	Wi-Fi 7	Wi-Fi 6	Wi-Fi 6
Band (GHz)	5 & 2,4	5 & 2,4	2 x 5 & 2,4	5 & 2,4
Max. Wi-Fi	7 GBit/s	3,6 GBit/s	6 GBit/s	3 GBit/s
MIMO data streams	4 x 4	2 x 2	4 x 4	2 x 2
Phone system
IP-based
HD telephony
DECT base
Smart home hub	DECT	DECT	DECT	DECT
Media server/NAS
10-gigabit LAN port	1	–	–	–
Phone (analogue)	2	1	–	1
USB port	1	1	1	1
1-gigabit LAN port	–	2	3	3
2,5-gigabit LAN port	3	1	–	–

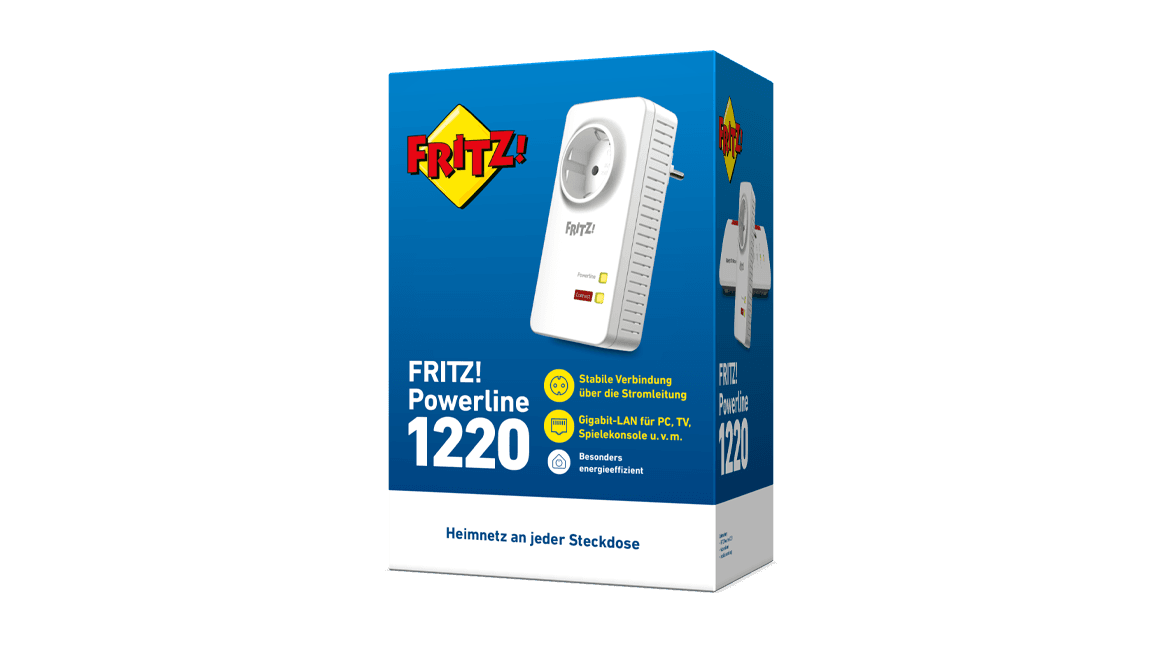

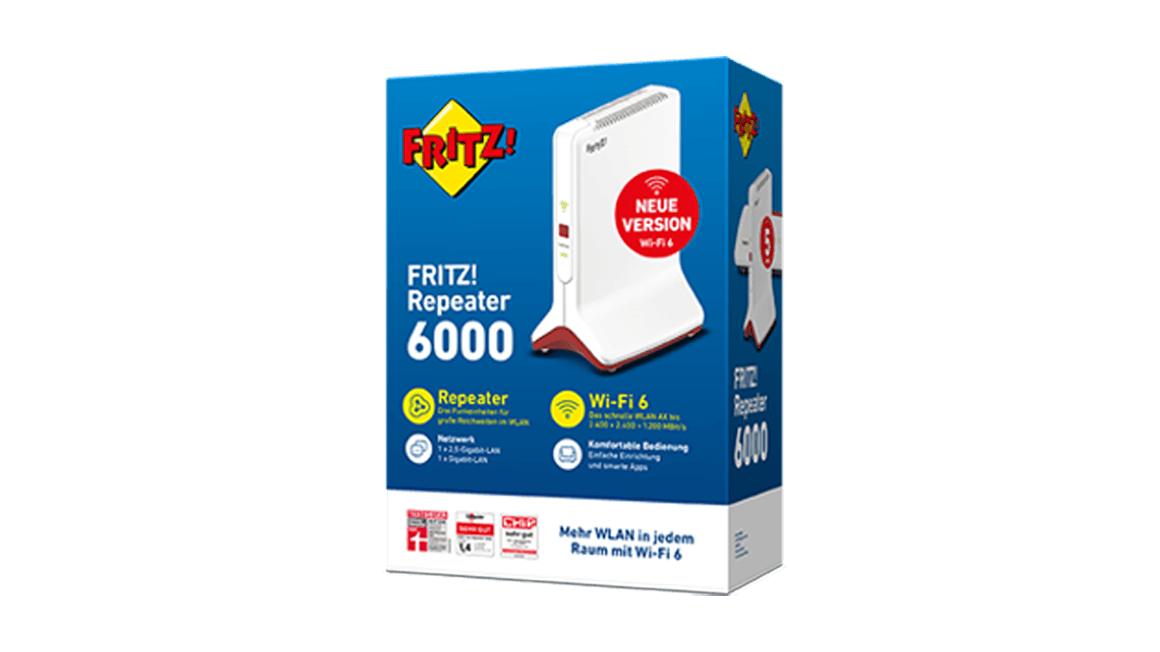

Comparison of FRITZ! Mesh Wi-Fi Products

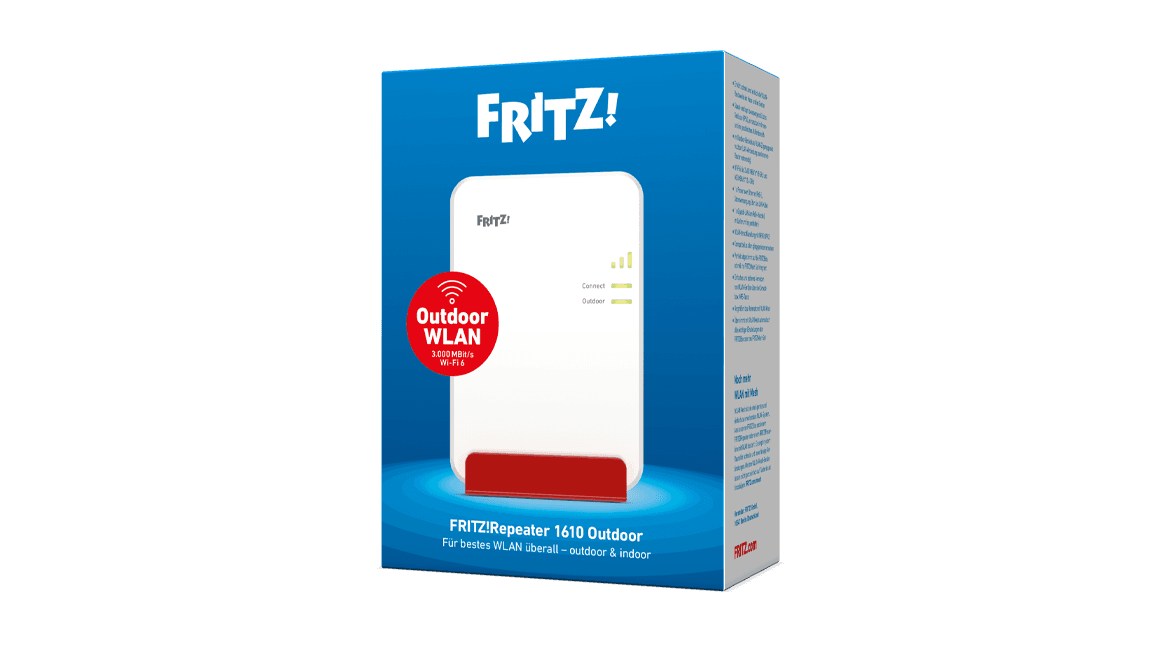

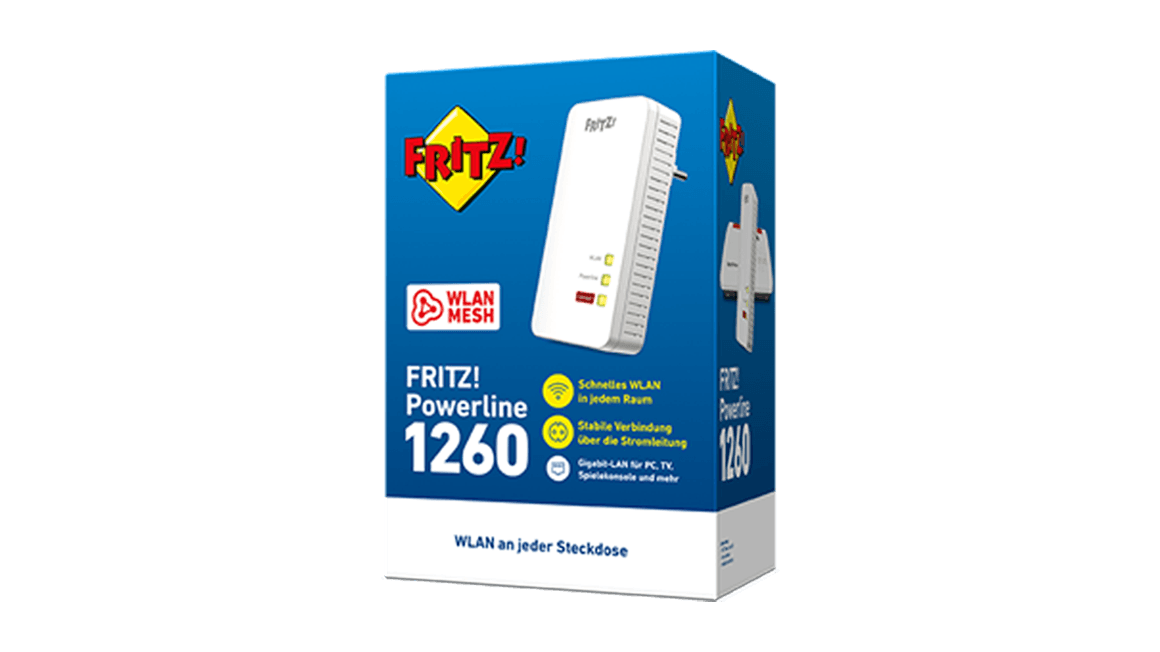

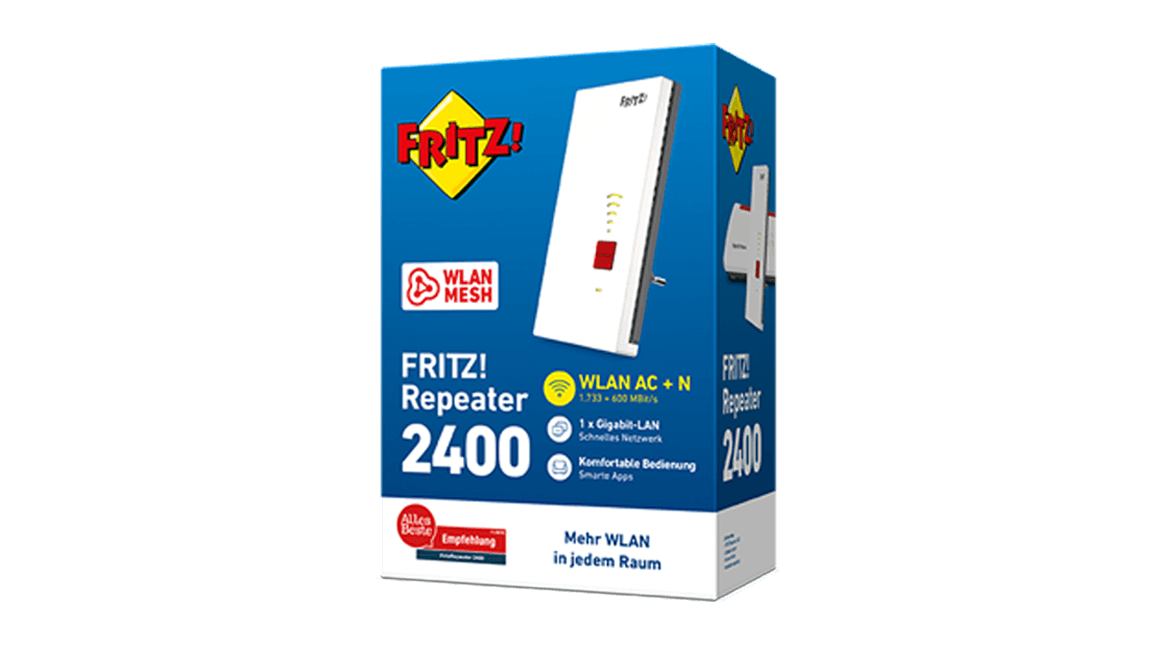

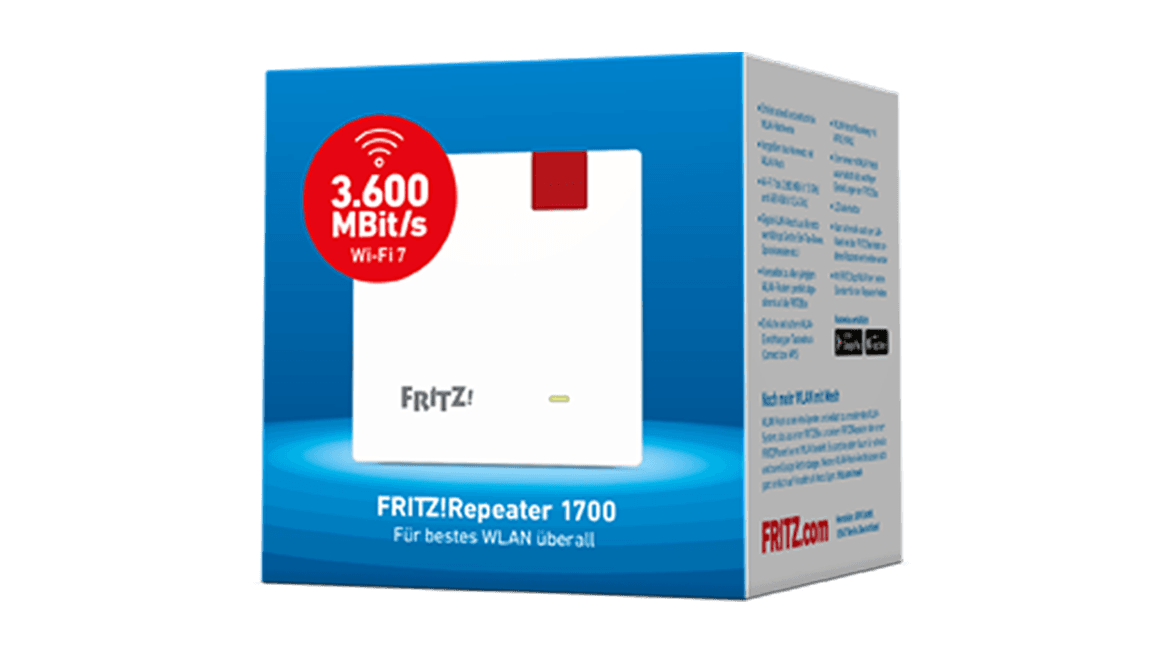

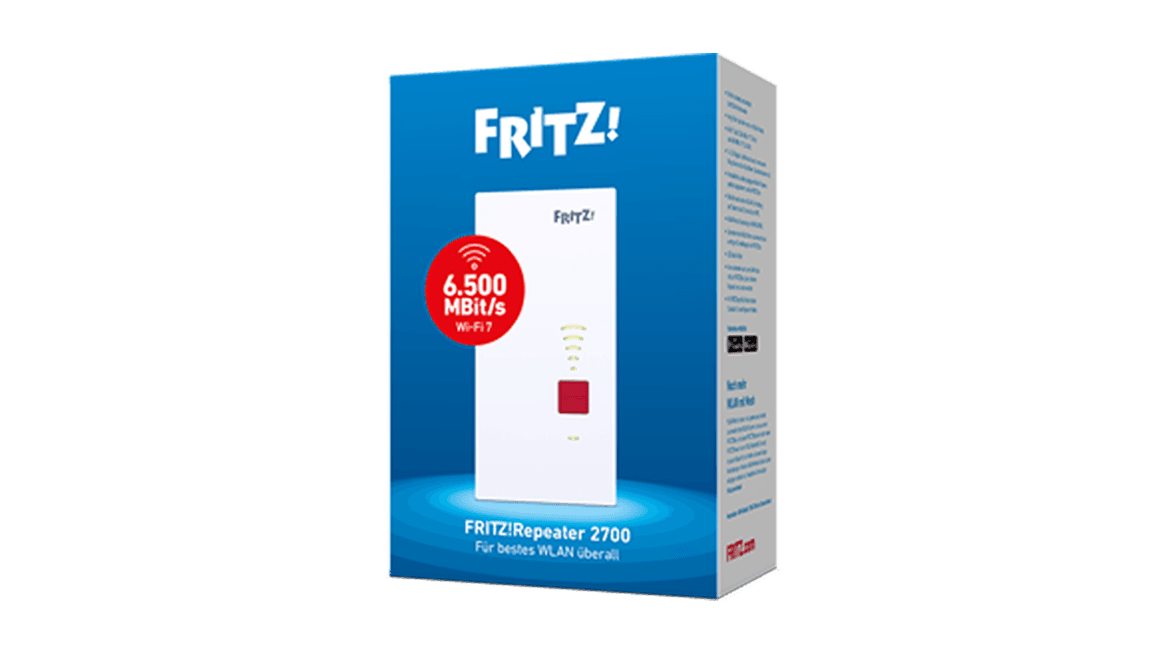

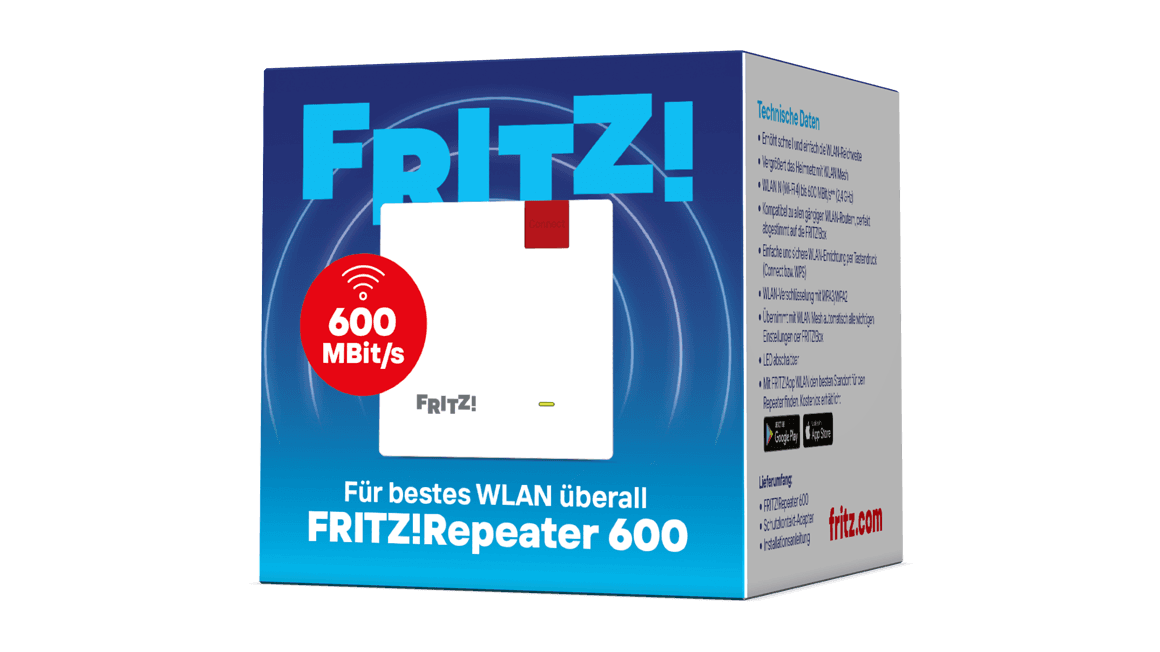

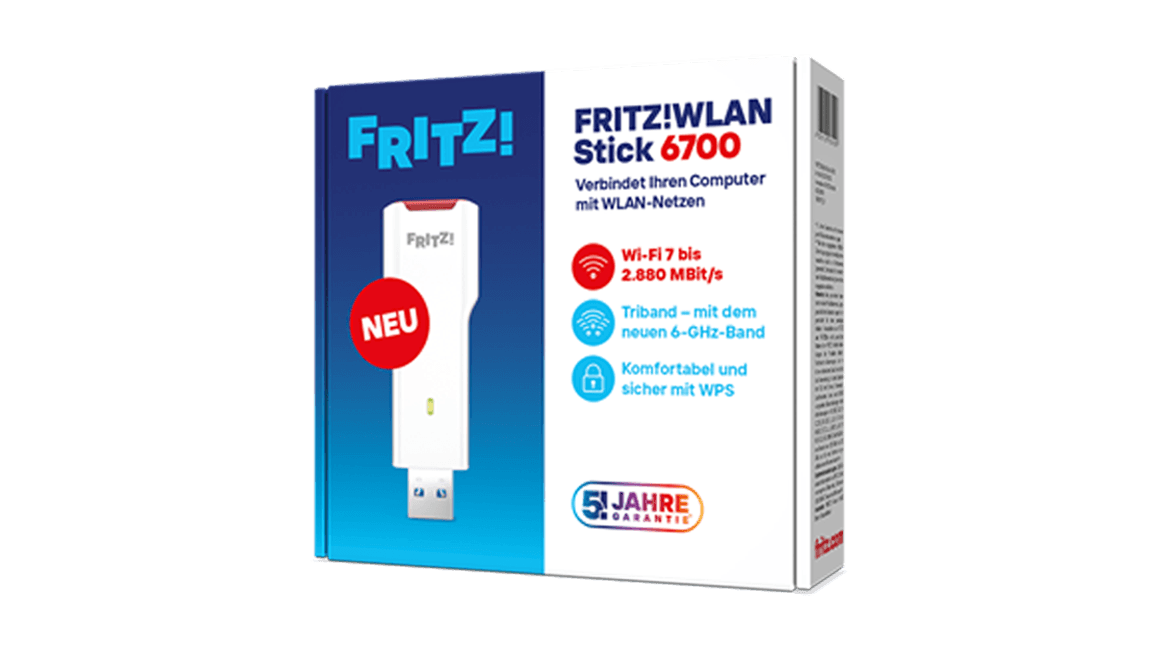

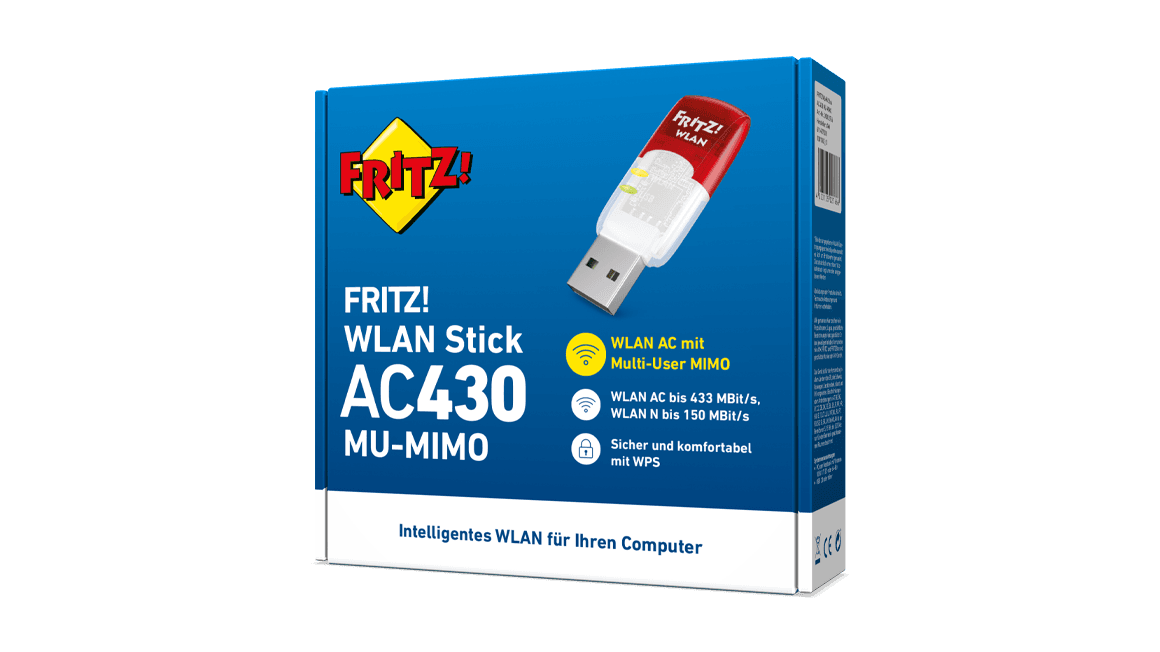

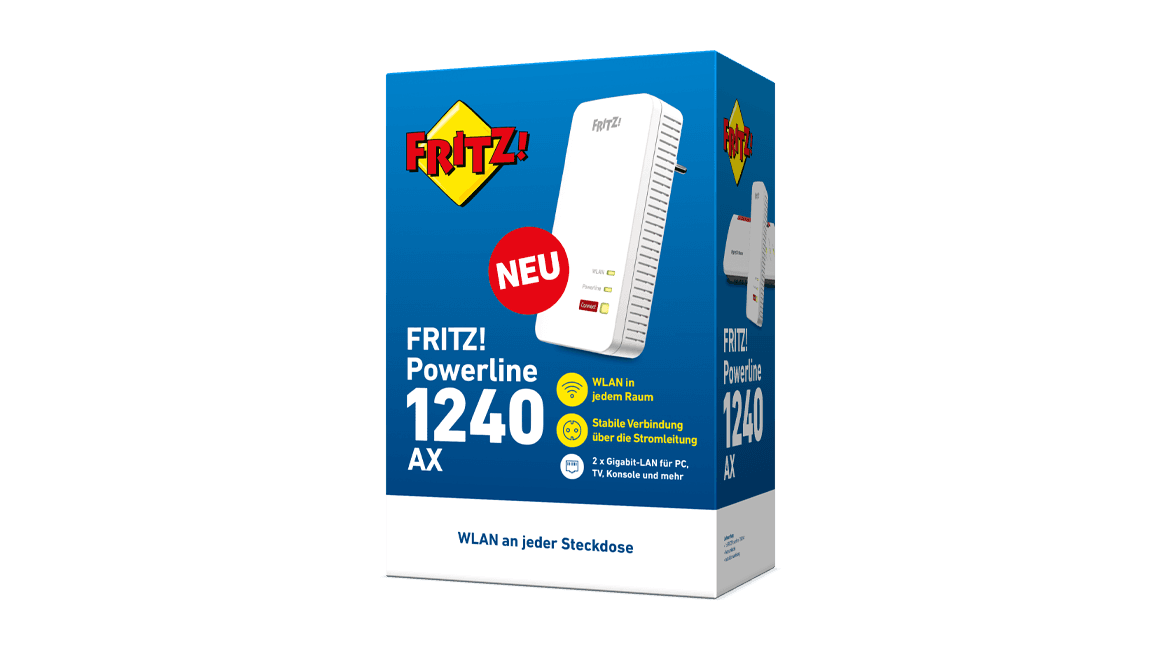

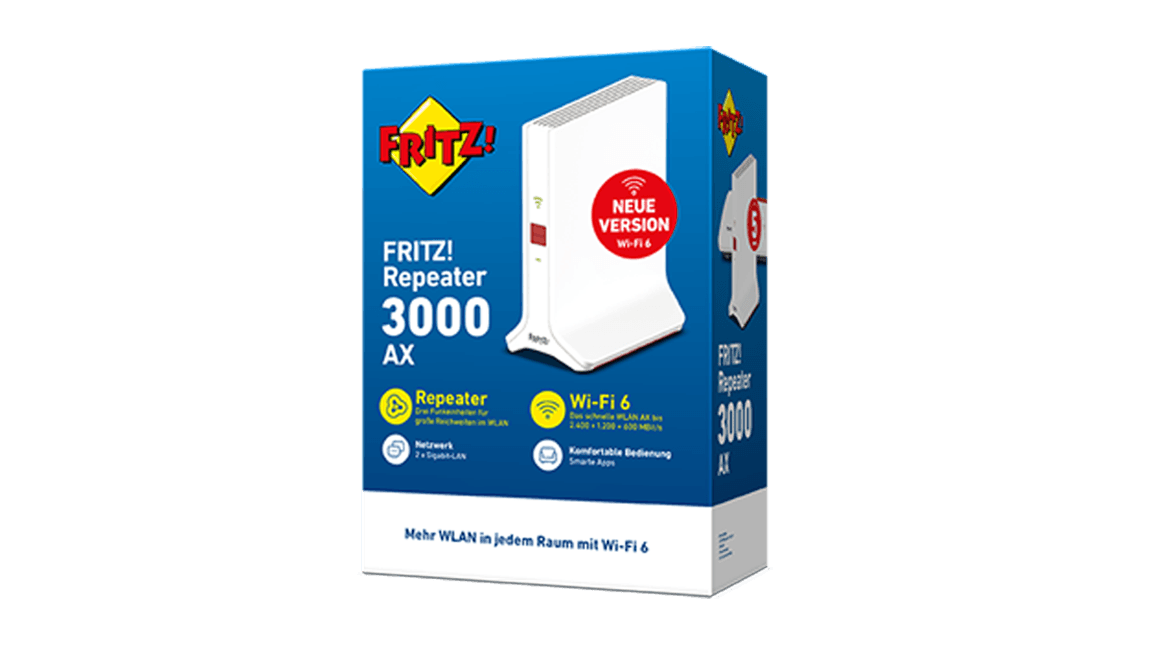

	FRITZ!Repeater 6000	FRITZ!Repeater 600	FRITZ!Repeater 3000 AX	FRITZ!Repeater 2700	FRITZ!Repeater 2400	Mesh Wi-Fi Extender 1700	FRITZ!Repeater 1610 Outdoor	Mesh Wi-Fi Extender 1600	FRITZ!Powerline 1260	FRITZ!Powerline 1240 AX	FRITZ!Powerline 1220	FRITZ!WLAN Stick 6700	FRITZ!WLAN USB Stick AC 430
MIMO data streams	4 x 4 + 4 x 4 + 4 x 4	4 x 4	4 x 4 + 2 x 2 + 2 x 2	4 x 4 + 2 x 2	4 x 4 + 4 x 4	2 x 2 + 2 x 2	2 x 2 + 2 x 2	2 x 2 + 2 x 2	2 x 2	2 x 2	–	2 x 2 bei 2,4 GHz, 2 x 2 bei 5 GHz, 2 x 2 bei 6 GHz	1 x 1
Smart plug	–	–	–	–	–	–	–	–	–	–		–	–
IP54-certified housing (protected outdoor areas)	–	–	–	–	–	–		–	–	–	–	–	–
Set/single product	–	–	–	–	–	–	–	–				–	–
Available as Mesh Set	–	–	FRITZ!Mesh Set 4200	–	–	FRITZ!Mesh Set 1700	–	FRITZ!Mesh Set 1600	–	–	–	–	–
Powerline max. Mbit/s	–	–	–	–	–	–	–	–	1.200	1.200	1.200	–	–
Power over Ethernet (PoE+)	–	–	–	–	–	–		–	–	–	–	–	–
1-gigabit LAN port	1	–	2	–	1	1	1	1	1	2	2	–	–
2,5-gigabit LAN port	1	–	–	1	–	–	–	–	–	–	–	–	–
WPS
WPA2/WPA3 transition Mode
Max. channel width	80 MHz	80 MHz	160 MHz	160 MHz	160 MHz	160 MHz	160 MHz	160 MHz	80 MHz	40 MHz	–	6 GHz: 160 MHz, 5 GHz: 160 MHz, 2,4 GHz: 40 MHz	80 MHz
Max. Wi-Fi	6 GBit/s	600 MBit/s	4,2 GBit/s	6,5 GBit/s	2.4 GBit/s	3,6 GBit/s	3 GBit/s	3,0 GBit/s	866 / 400 MBit/s	600 MBit/s	–	bis 6,4 GBit/s	600 MBit/s
Band (GHz)	2 x 5 & 1 x 2,4	2,4	2 x 5 & 1 x 2,4	5 & 2,4	5 & 2,4	5 & 2,4	5 & 2,4	5 & 2,4	5 & 2,4	2,4	–	6 & 5 & 2,4	5 & 2,4
Mesh Wi-Fi
Wi-Fi	Wi-Fi 6	Wi-Fi 4	Wi-Fi 6	Wi-Fi 7	Wi-Fi 5	Wi-Fi 7	Wi-Fi 6	Wi-Fi 6	Wi-Fi 5	Wi-Fi 6	–	Wi-Fi 7	Wi-Fi 5

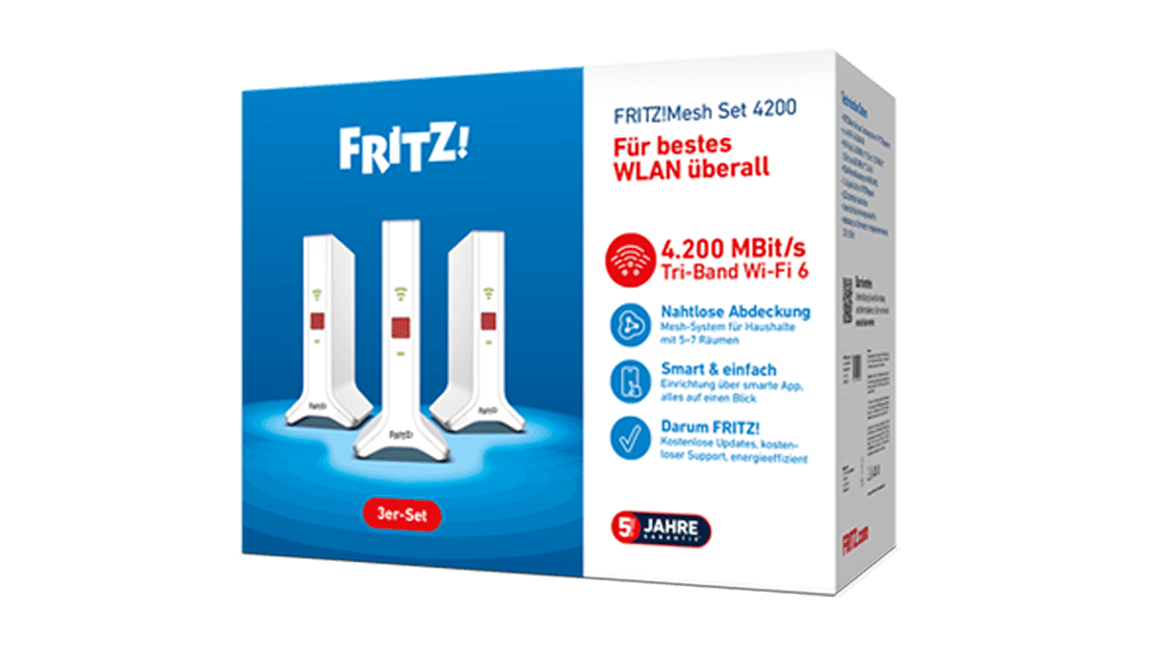

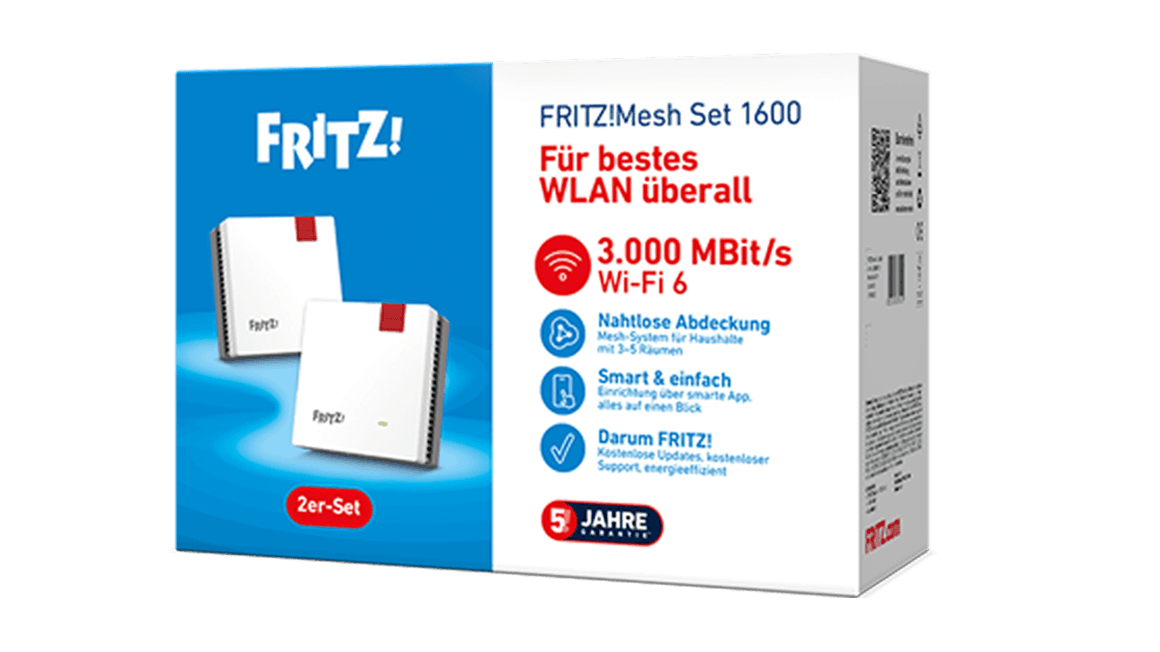

Comparison of FRITZ!Mesh Wi-Fi Sets

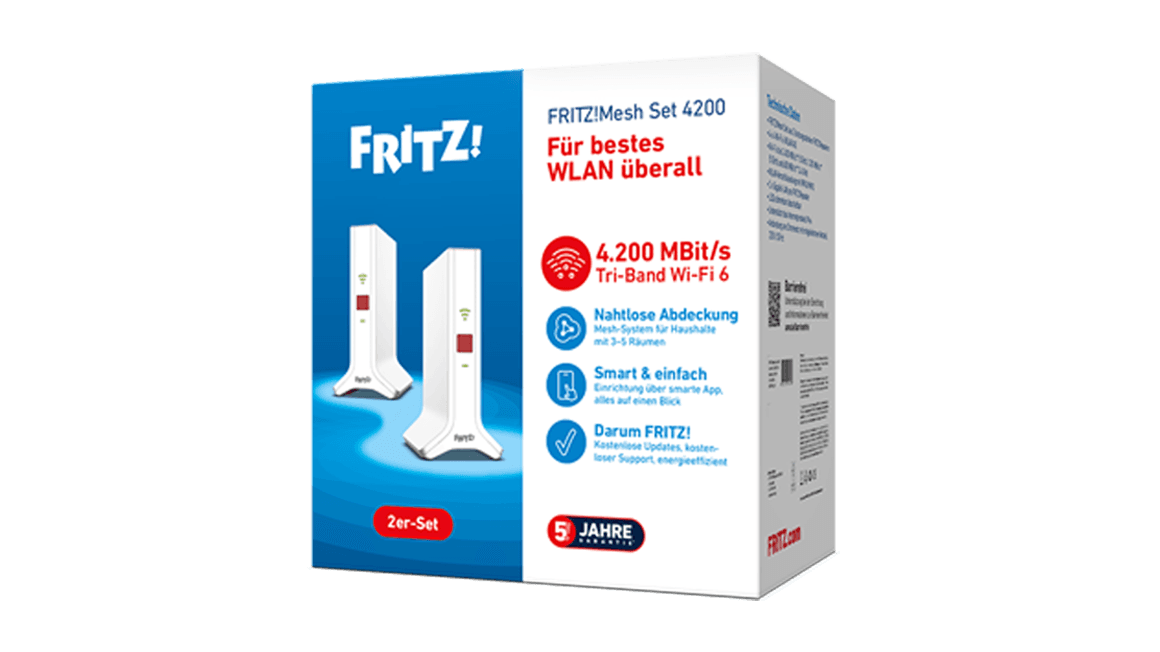

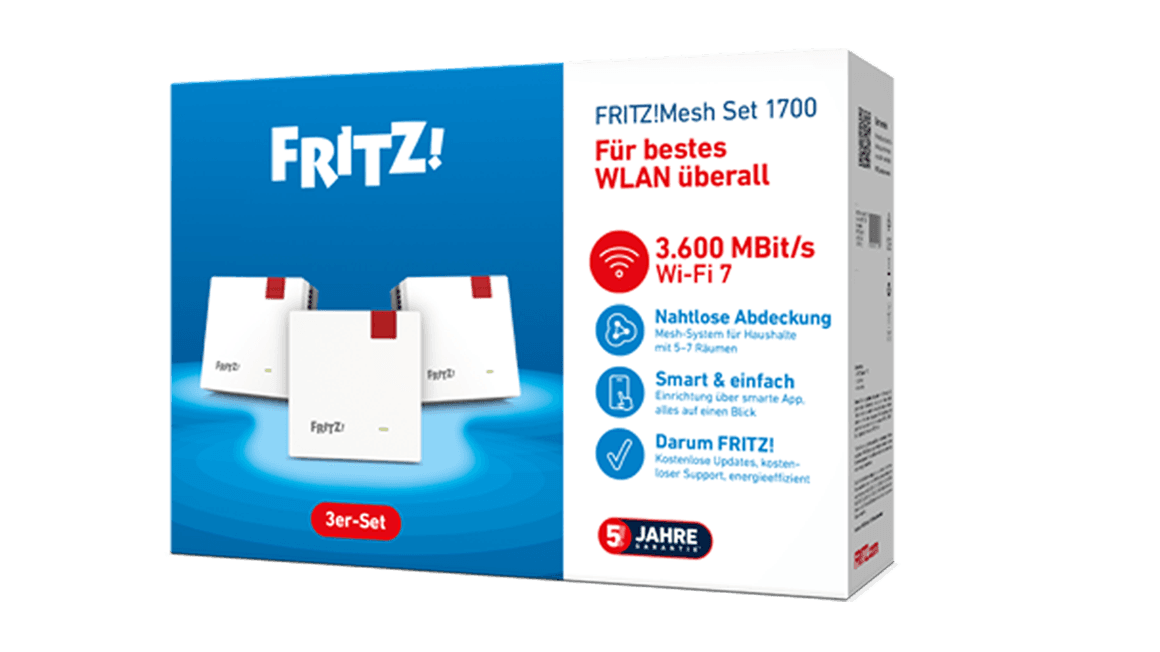

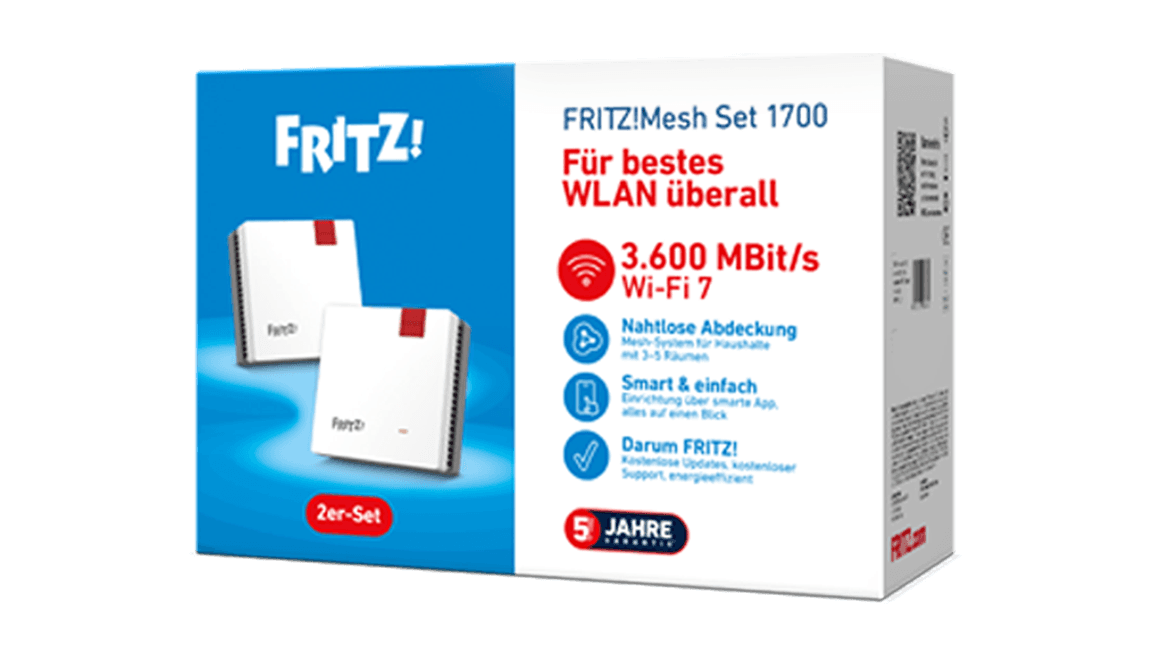

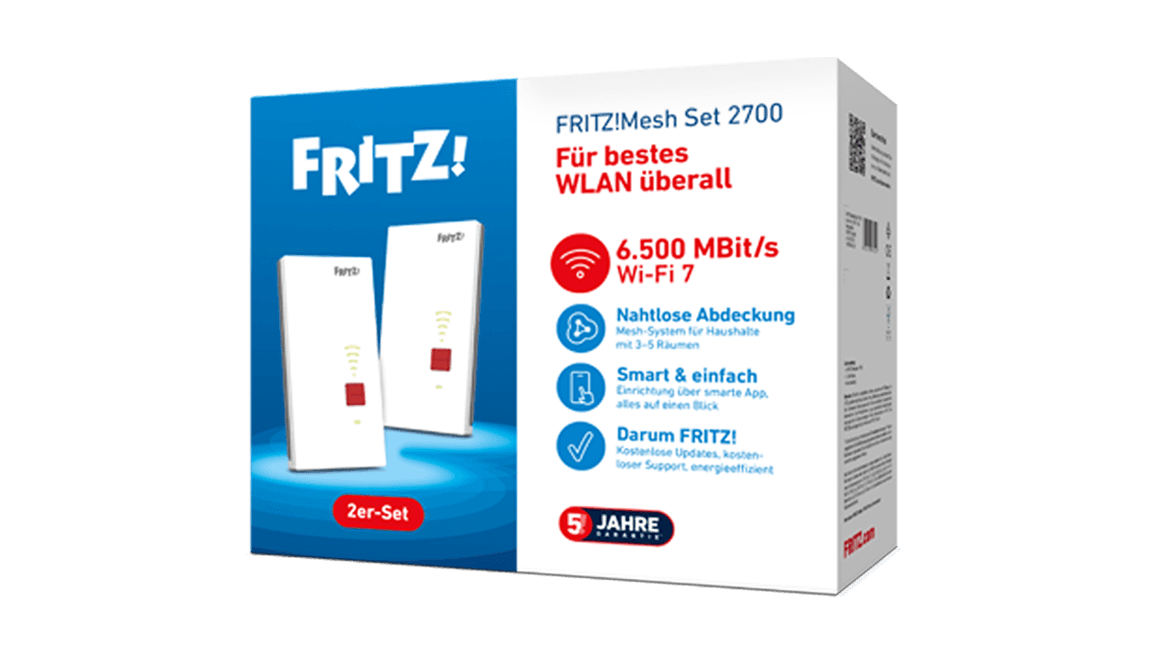

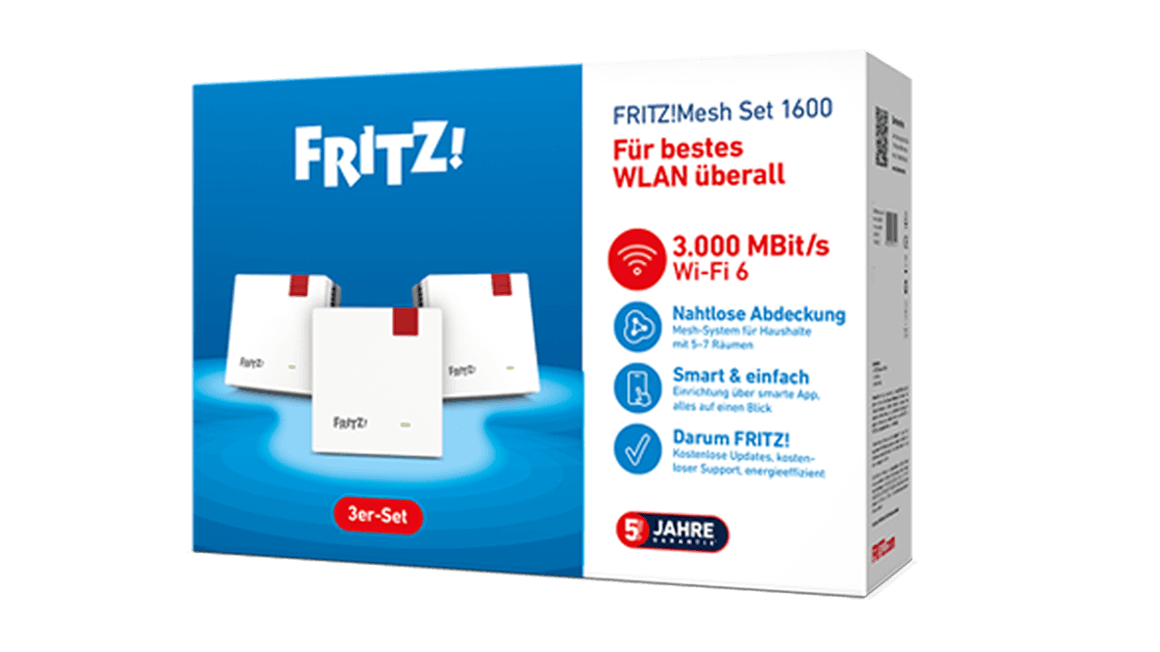

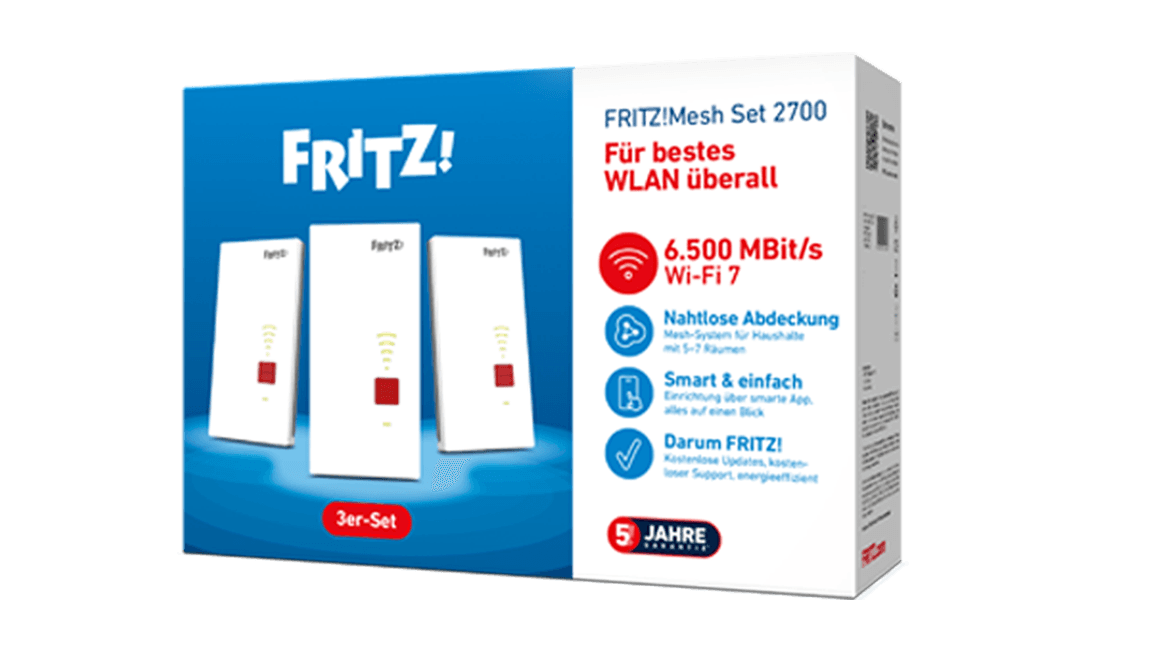

	FRITZ!Mesh Set 4200 3er-Set	FRITZ!Mesh Set 4200 2er-Set	FRITZ!Mesh Set 2700 3-pack	FRITZ!Mesh Set 2700 2-pack	FRITZ!Mesh Set 1700 3-pack	FRITZ!Mesh Set 1700 2-pack	FRITZ!Mesh Set 1600 3-pack	FRITZ!Mesh Set 1600 2-pack
Wi-Fi	Wi-Fi 6	Wi-Fi 6	Wi-Fi 7	Wi-Fi 7	Wi-Fi 7	Wi-Fi 7	Wi-Fi 6	Wi-Fi 6
Mesh Wi-Fi
Mesh Master
Band (GHz)	1 x 2,4 und 2 x 5	1 x 2,4 und 2 x 5	2,4 und 5	2,4 und 5	2,4 und 5	2,4 und 5	2,4 und 5	2,4 und 5
Max. Wi-Fi	4.2 GBit/s	4.2 GBit/s	6.5 GBit/s	6.5 GBit/s	3.6 GBit/s	3.6GBit/s	3.0 GBit/s	3.0 GBit/s
Max. channel width	160 MHz	160 MHz	160 MHz	160 MHz	160 MHz	160 MHz	160 MHz	160 MHz
WPA3/WPA2
WPS
1-gigabit LAN port	6 (2 pro Repeater)	4 (2 pro Repeater)	–	–	3 (1 pro Repeater)	2 (1 pro Repeater)	3 (1 pro Repeater)	2 (1 pro Repeater)
2,5-gigabit LAN port	–	–	3 (1 pro Repeater)	2 (1 pro Repeater)	–	–	–	–
MIMO data streams	4 x 4 + 2 x 2 + 2 x 2	4 x 4 + 2 x 2 + 2 x 2	4 x 4 + 2 x 2 + 2 x 2	4 x 4 + 2 x 2 + 2 x 2	2 x 2 + 2 x 2	2 x 2 + 2 x 2	2 x 2 + 2 x 2	2 x 2 + 2 x 2

Comparison of FRITZ! Smart Home Products

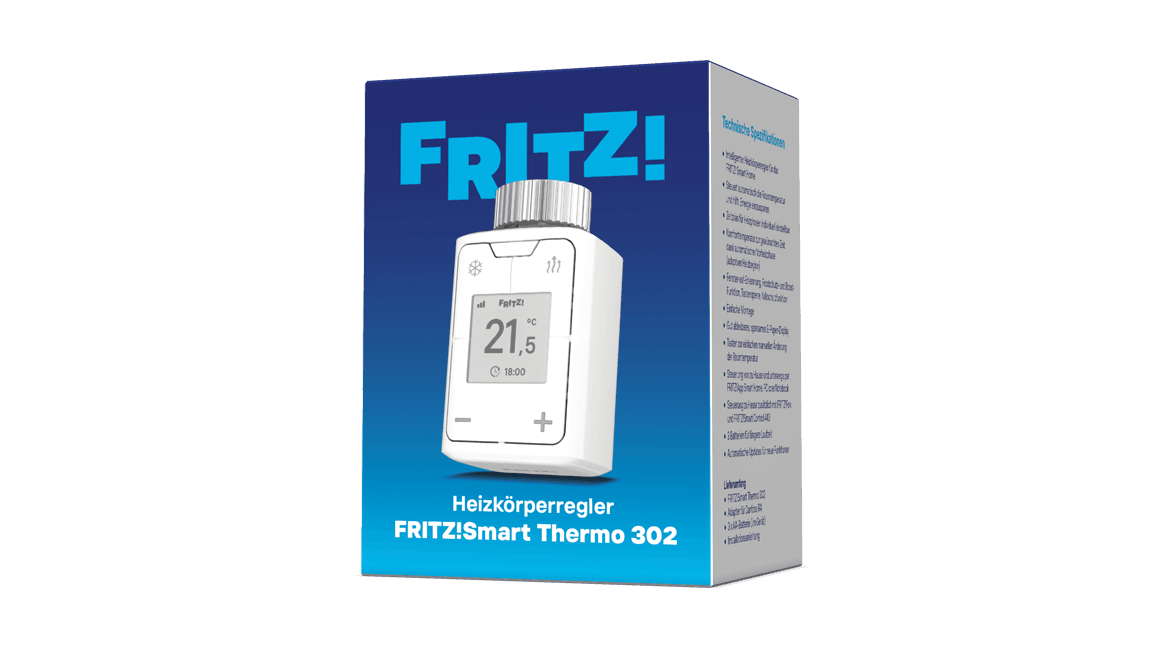

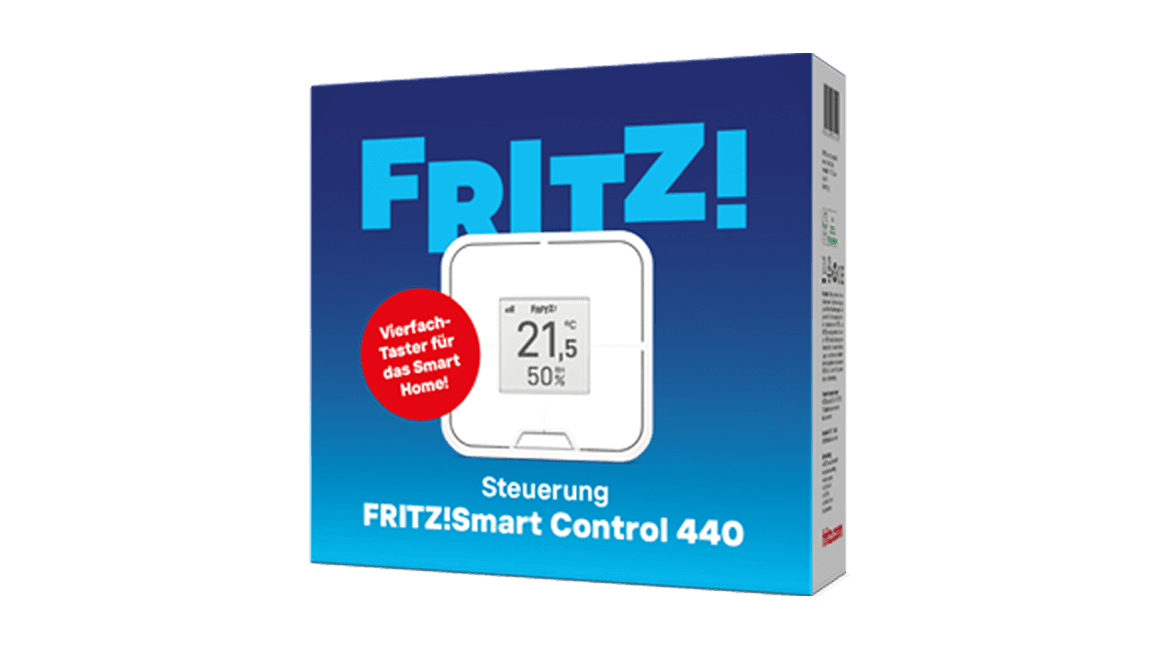

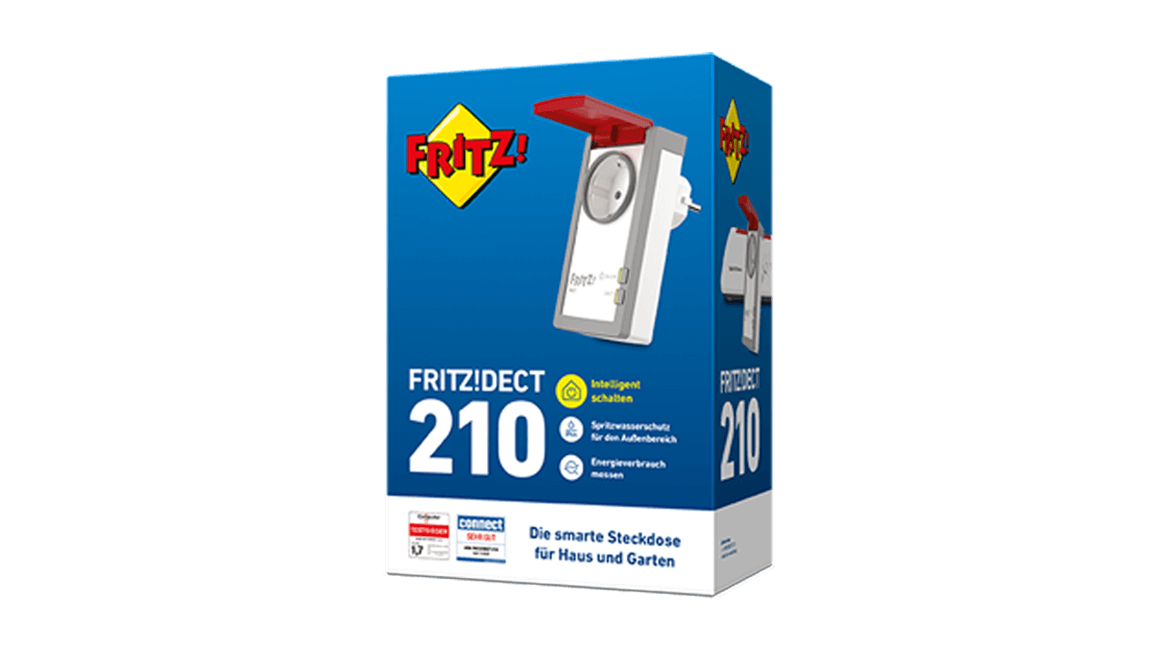

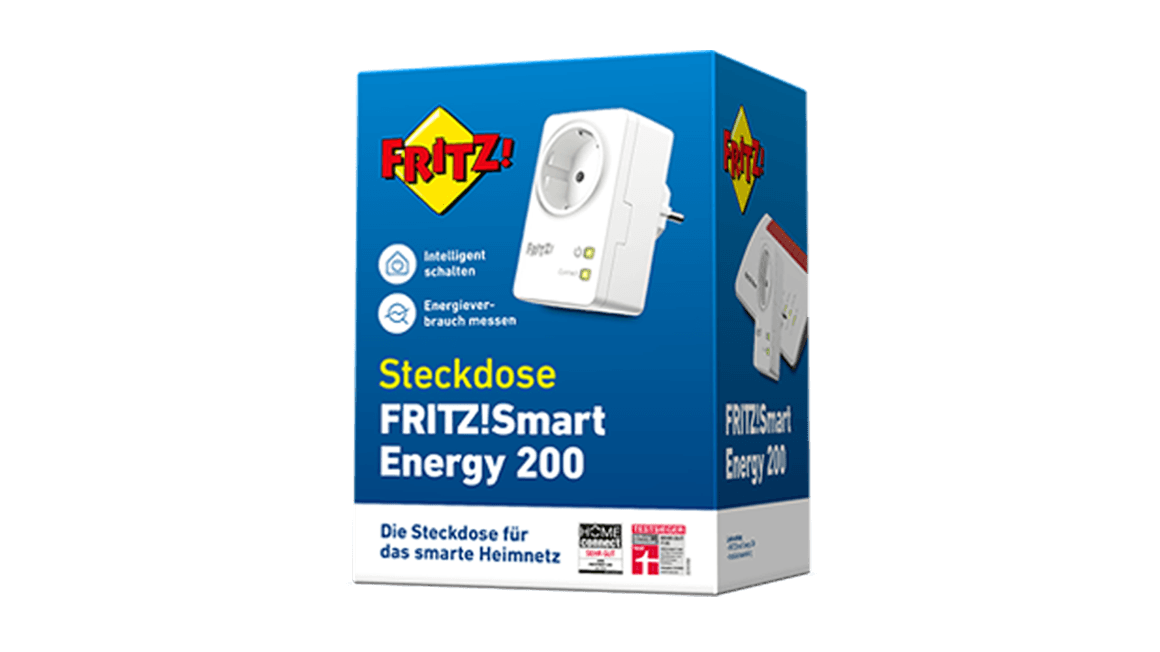

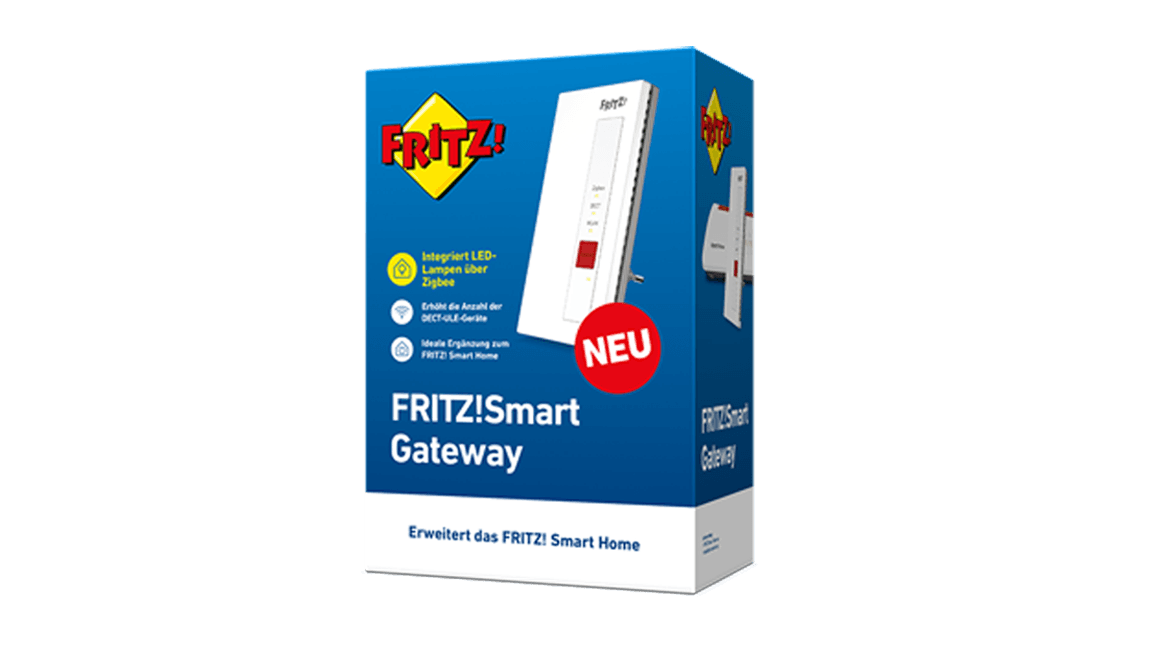

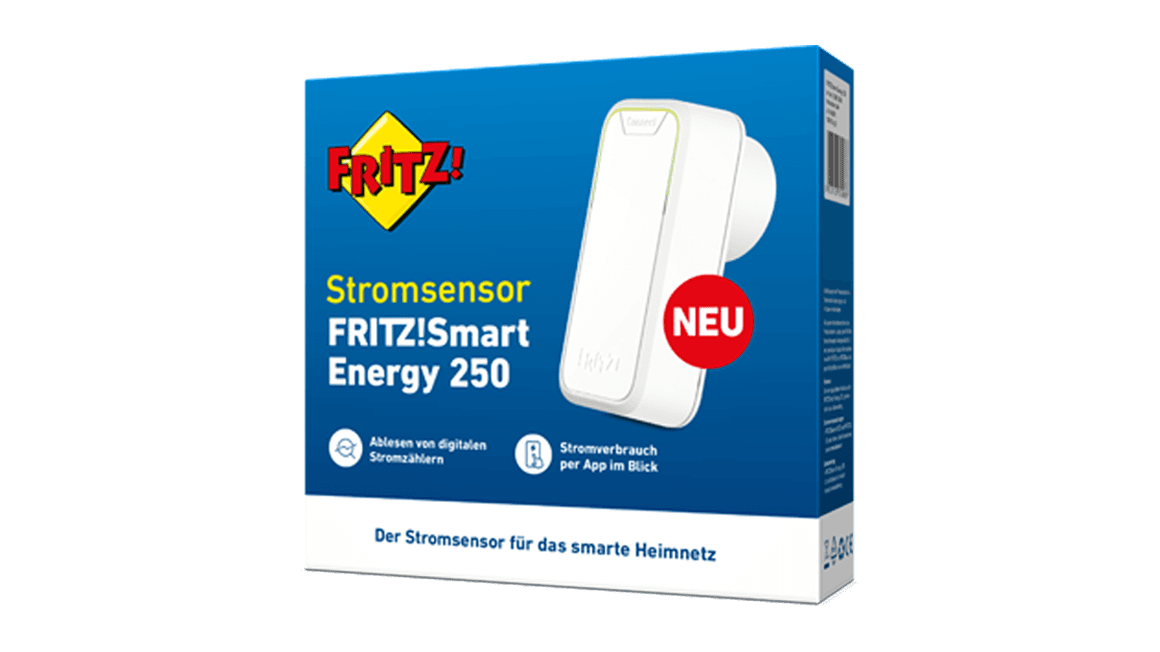

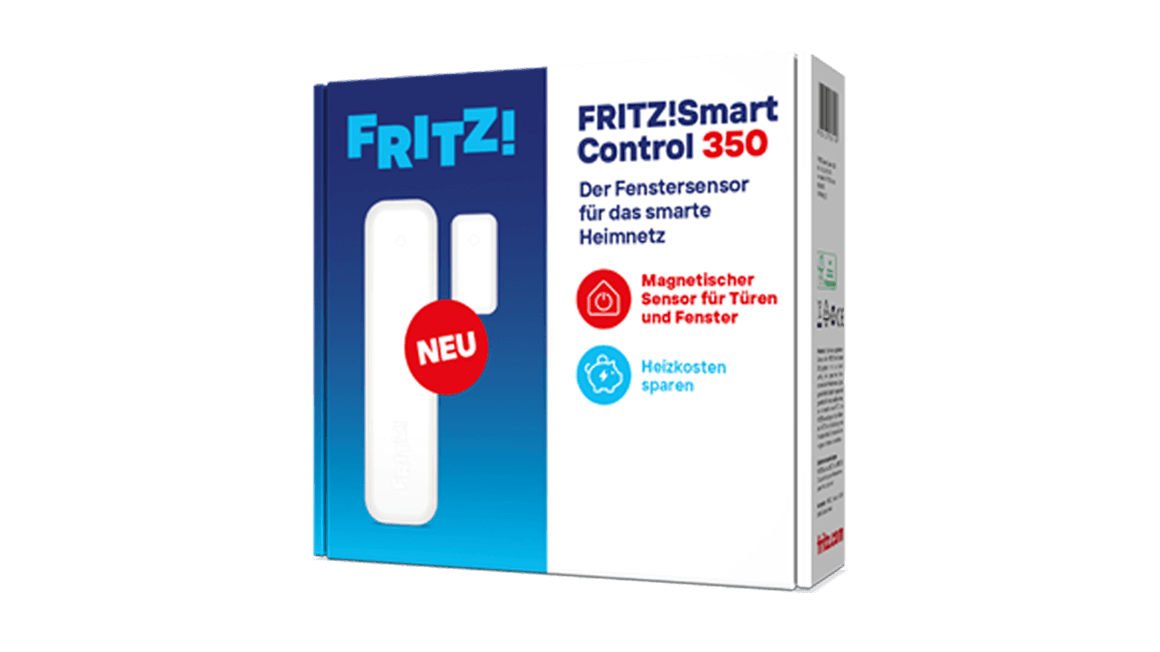

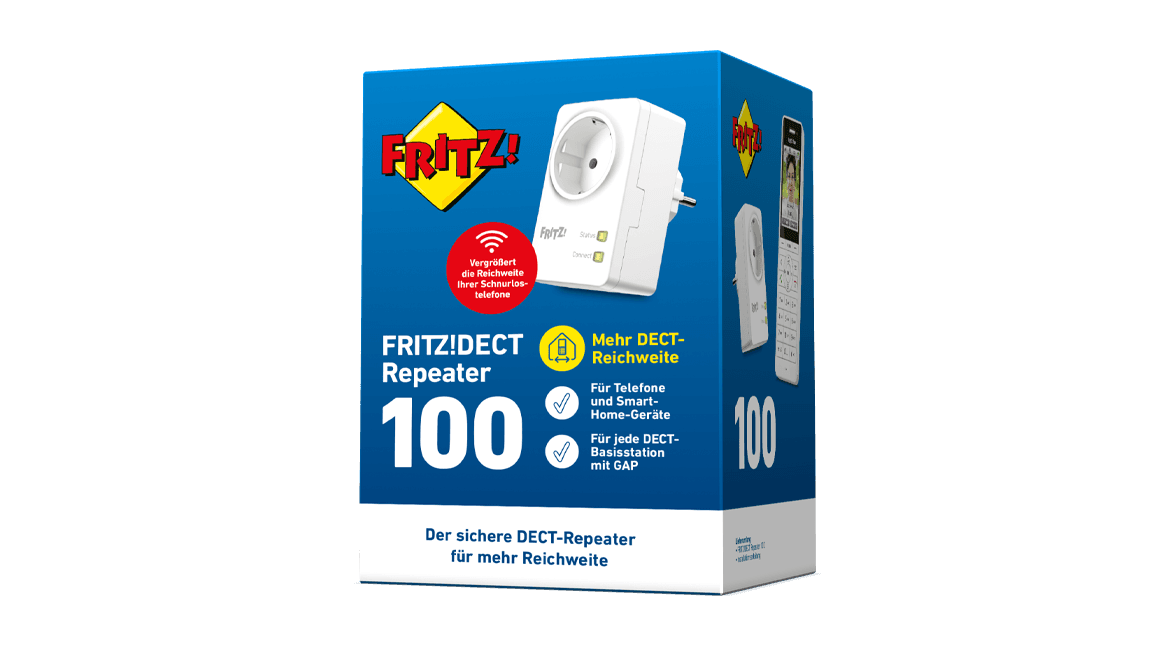

	FRITZ!Smart Thermo 302	FRITZ!Smart Gateway	FRITZ!Smart Energy 250	FRITZ!DECT 210	FRITZ!Smart Energy 200	FRITZ!Smart Control 440	FRITZ!Smart Control 350	FRITZ!DECT Repeater 100
Smart plug	–	–	–			–	–
Measures humidity	–	–	–	–	–		–	–
Reads data from digital electricity meter	–	–		–	–	–	–	–
Switching/control at home and on the go		–	–			–	–	–
Encryption
Automatic updates
Measures power	–	–	–			–	–	–
Splash-protection (IP44)	–	–	–		–	–	–	–
Radiator control		–	–	–	–	–	–	–
DECT repeater	–	–	–	–	–	–	–
Switch	–	–	–	–	–		–	–
Door/window sensor	–	–	–	–	–	–		–
For digital electricity meters	–	–		–	–	–	–	–
Matter bridge	–		–	–	–	–	–	–
Gateway (Zigbee 3.0/DECT ULE)	–		–	–	–	–	–	–
Colour display		–	–	–	–		–	–
Measures temperature		–	–				–

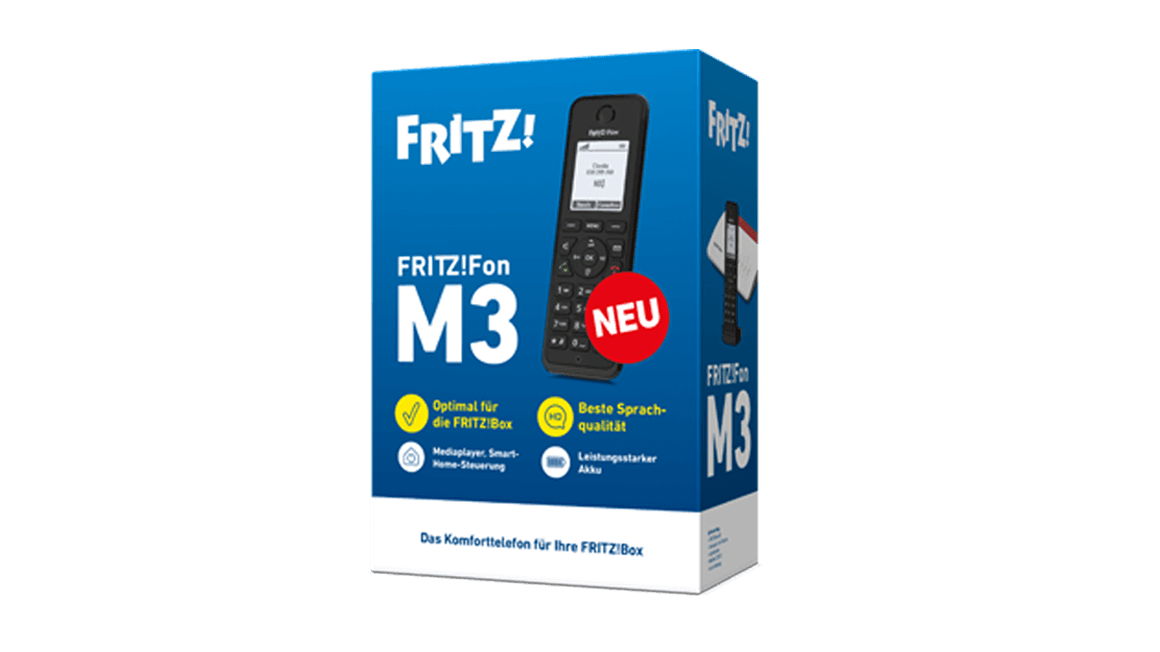

Comparison of FRITZ! Phones

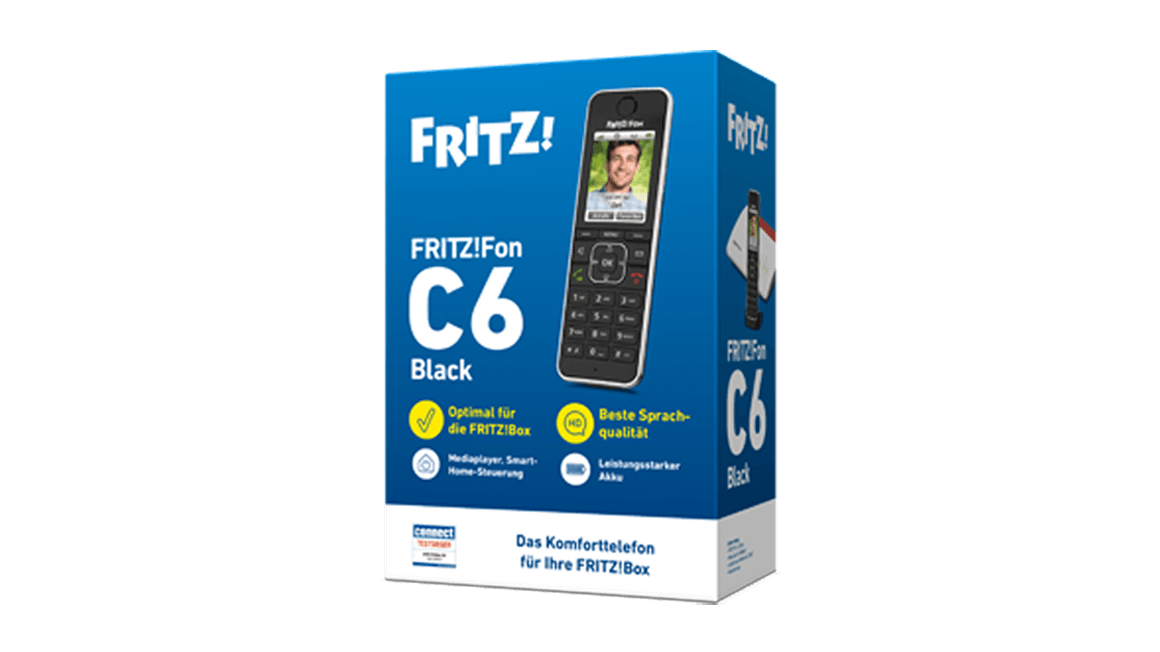

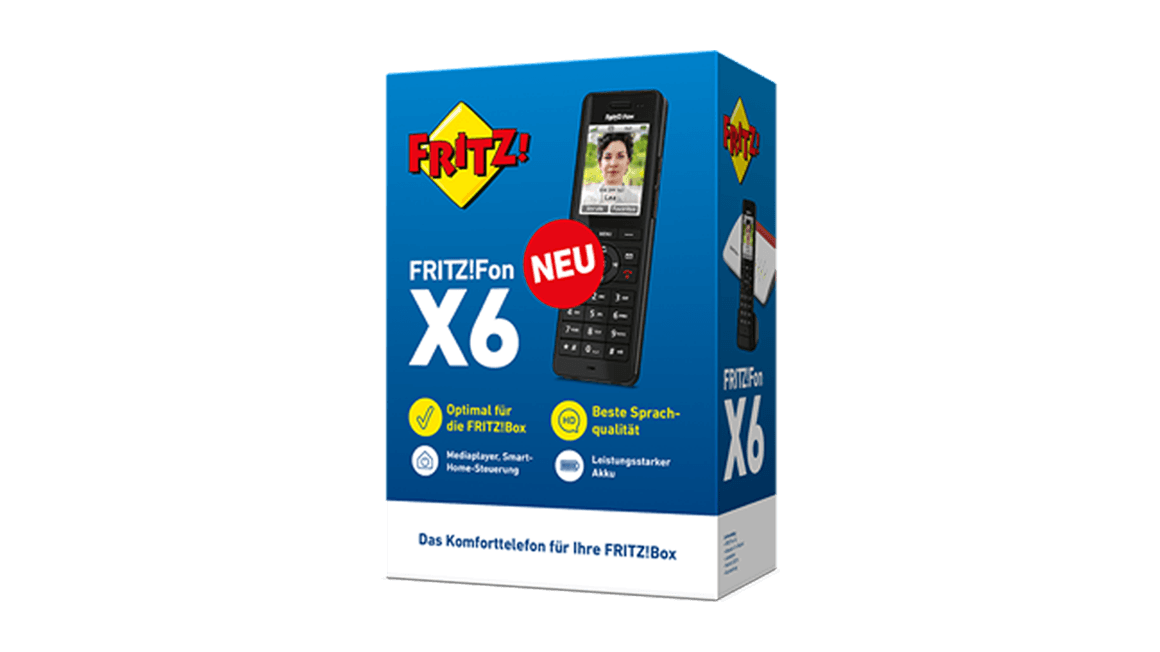

	FRITZ!Fon X6/X6 Black	FRITZ!Fon M3	FRITZ!Fon C6/C6 Black
DECT
HD telephony
Answering machine
MWI
Email & RSS
Internet radio
UPnP media player
Colour display	2,4 Zoll	–	2,2 Zoll
Keyboard illumination
Volume keys		–
Brightness/motion sensor		–
Headset port		–
Key for quick access		–	–

Last updated: 08/31/2026
