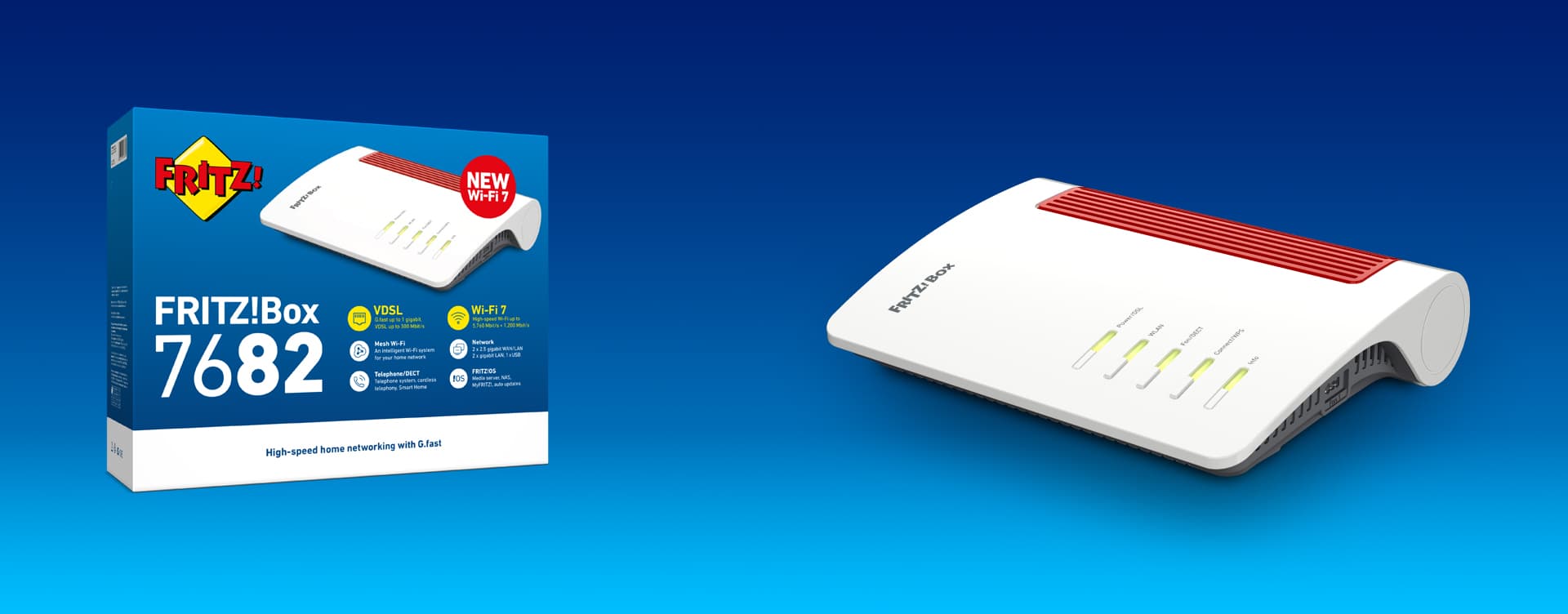

FRITZ!Box 7682
The FRITZ!Box 7682 offers maximum flexibility with G.fast up to 1000 Mbit/s, supervectoring for DSL up to 300 Mbit/s and 2.5-gigabit WAN for use with a fiber optic modem. Experience fast Wi-Fi 7 on 5 GHz. A wide range of features for your home network and smart home, plus a complete phone system with a DECT base station, round out the highlights.
Wi-Fi 7 – the new generation of Wi-Fi with multi-gigabit!
Wi-Fi 7 brings top Wi-Fi speeds and offers even more powerful connections for many devices. That makes it ideal for real-time applications such as gaming, virtual reality and video calls. Wi-Fi 7 is perfectly integrated into the FRITZ! ecosystem – all wireless devices work together optimally in the Mesh Wi-Fi, supplying you with top speeds. With punctured mode, your Wi-Fi can circumvent interference. Your FRITZ!Box automatically ensures you have the best connection.
The new Wi-Fi 7 standard adapts to your current environment and also works perfectly with all older wireless devices.
Mesh Wi-Fi with FRITZ!
The FRITZ!Box 7682 supports Mesh Wi-Fi, meaning your videos, music, and photos seamlessly reach every corner of your home, flat or office. FRITZ!Repeater, FRITZ!Powerline or other FRITZ!Box models adopt the settings of the FRITZ!Box at the internet connection and all devices are always optimally connected – automatically and reliably.
With Mesh you enjoy high speeds while surfing, streaming or gaming. Instead of waiting for breathtaking 4k streaming and your favourite music, your media will wait for you.
Up to 1000 Mbit/s with G.fast
With the FRITZ!Box 7682 you're well prepared for the future: The new DSL model supports G.fast for connections with up to 1 Gbit/s and 35b supervectoring for up to 300 Mbit/s. This means that the high fiber optic speed reaches the apartment via the existing copper lines. The 2.5-gigabit WAN/LAN port also allows you to surf at top speeds on the fiber optic modem.
Automate your FRITZ! Smart Home
The FRITZ!Box 7682 offers practical automation for energy, heating, lighting and more. Control your smart home devices with schedules, scenes or routines. The FRITZ!Box supports smart home products via DECT.
The USB port is perfect for FRITZ!NAS and the FRITZ! media server: Connect an external hard drive to your FRITZ!Box and you have access to it throughout your home network.
G.fast up to 1 Gbit/s and VDSL up to 300 Mbit/s
High-speed Wi-Fiup to 5760 + 1200 Mbit/s
Intelligent Mesh Wi-Fi for your home or office network
Networkwith 2 x 2.5-gigabit WAN/LAN, 2 x gigabit LAN and 1 x USB
Phone systemwith DECT base station for cordless telephony
MediaserverNAS, MyFRITZ!, auto updates

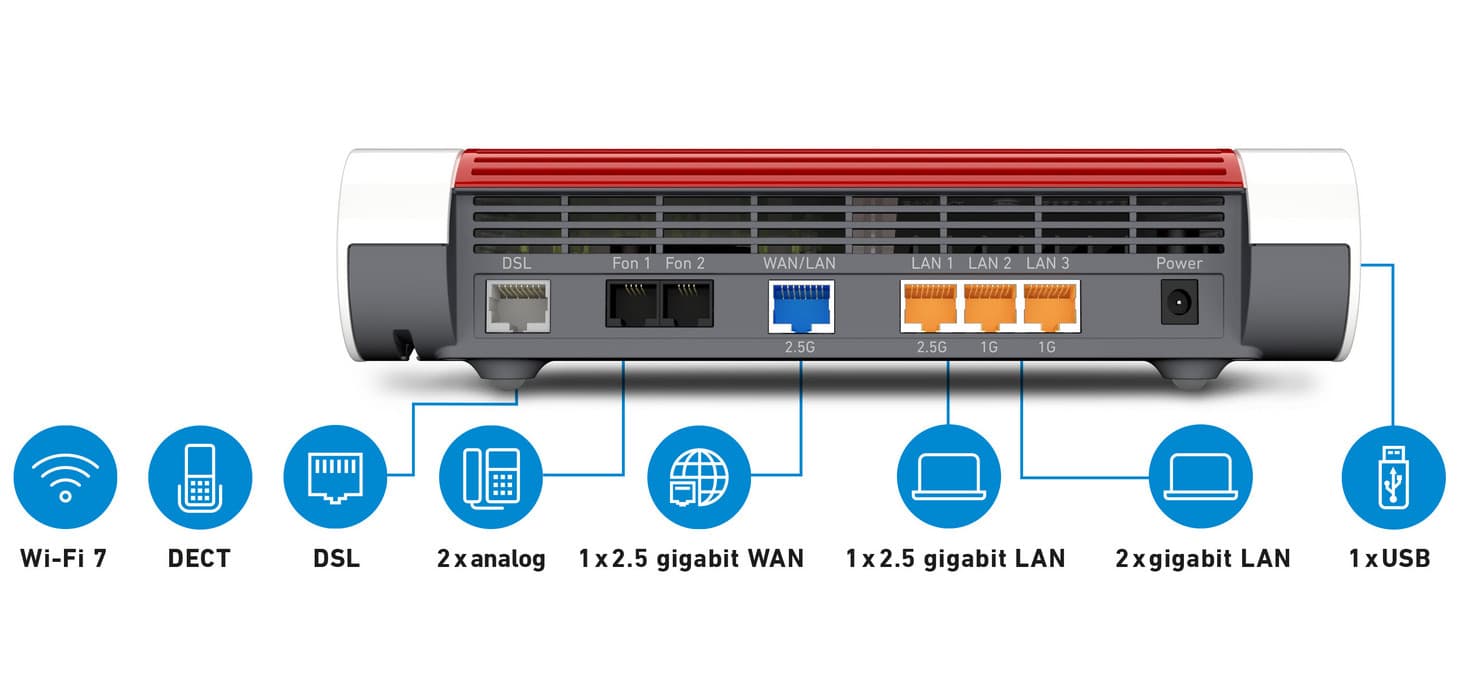

Technical specifications
Connections
- 1 x G.fast up to 1 Gbit, (V)DSL up to 300 Mbit/s and ADSL2+
- 1 x 2.5-gigabit WAN/LAN
- 1 x 2.5-gigabit LAN
- 2 x gigabit LAN
- Wi-Fi 7
- DECT base station for cordless phones and smart home
- 2 x connections (2 x RJ11, 1 x (optional) TAE) for analogue phone, answering machine or fax
- 1 x USB 2.0 port for storage media and printers
Wi-Fi
- up to 6.9 Gbit/s via Wi-Fi 7 / Wi-Fi 6
- 5 GHz: up to 5760 Mbit/s (Wi-Fi 7)
2.4 GHz: up to 1200 Mbit/s (Wi-Fi 6) - 4 x 4 MIMO
- Mesh Wi-Fi
- Compatible with the IEEE 802.11a/g/n/ac/ax/be Wi-Fi standards
- Wi-Fi network encryption with WPA3/WPA2
- Easy connection at the touch of a button (WPS)
- Wi-Fi guest access / hotspot with captive portal
- Wi-Fi eco mode for optimum performance at minimum power consumption
- Switch Wi-Fi on and off using button, FRITZ!Fon, FRITZ!App or by schedule
Telefony
- Phone system with DECT base station for up to six cordless phones
- With FRITZ!Fon additional functions (e.g. calendar or weather forecast)
- Sockets for two analogue phones, answering machine or fax
- Registration of IP phones (LAN/Wi-Fi) SIP-compliant
- Voice transmission encrypted upon delivery
- Supports HD telephony for natural sound
- DECT Eco: Wireless network switches off when DECT phones on standby
- 5 integrated answering machines with option for emailing voice messages
- Local and online phone books (Google, Apple, CardDAV and more) with up to 1000 entries
- Fax function with option for emailing fax message
- Call diversion, internal calls (intercom), three-way conferencing, call transfer, phone number blocks and Do Not Disturb
DSL / Internet
- G.fast up to 1 Gbit/s
- Integrated modem for all (V)DSL connections up to 300 Mbit/s (including supervectoring) and ADSL2+
- Router operation via WAN even with cable or fiber optic modem (ONT)
- Fallback protection via USB dongle
- MyFRITZ! – secure access to your own FRITZ!Box from anywhere
- VPN (WireGuard / IPSec)
- Firewall / NAT with port sharing
- Wake on LAN
- Parental controls (time budget, youth protection filter, device block)
Smart Home / Media
- Smart home features for energy and heating
- Supports smart home devices in accordance with the DECT ULE standard
- Automation in the smart home with schedules, scenes, and routines with if-then combinations
- Operation of your FRITZ! Smart Home via the FRITZ!Box user interface, FRITZ!Fon, FRITZ!DECT-Taster and FRITZ!App Smart Home
- FRITZ!NAS: Central storage for all data in the home network
- Media server for music, photos, and videos in the home network (DLNA/UPnP AV)
- Ideal for IPTV and streaming music and videos
FRITZ!OS
- Intuitive browser- and app-based user interface
- Free FRITZ!Apps for smartphone
- Context-sensitive Online Help
- Push service mails for events in the home network
- Security functions with diagnostic tool, auto-updates, firewall, and filter functions
- Optional energy-saving mode for even more energy efficiency
- Free updates with new functions and optimizations
Package Contents
- FRITZ!Box 7682
- Power adapter
- 4 m DSL connecting cable
- 1.5 m LAN cable
- Quick guide
Device properties
- Dimensions (W x H x D): 254 x 63 x 191 mm
- Average energy consumption: 12 - 13 W
Product Version Number
- 20003064 FRITZ!Box 7682 Int. Edition
Downloads
- Data sheet
- CE Declaration (PDF)
- Data act (PDF)
