FRITZ!Box 6690 Pro

FRITZ!Box 6690 Pro

The FRITZ!Box 6690 Pro is the new all-in-one package for demanding users with a cable connection. It combines a DOCSIS 3.1 cable modem for multi-gigabit speeds with tri-band Wi-Fi 7, versatile telephony functions, and smart home via Zigbee and DECT ULE. Configuration is extremely simple using the MyFRITZ!App. The integrated DVB-C quad tuner also brings free-to-air cable TV to the home network. Up to four different TV channels can be streamed simultaneously on terminal devices in the home network – via Wi-Fi or LAN cable. Telephony, parental controls for internet access, Wi-Fi guest access, network storage (NAS), smart home applications, VPN and much more round out the first-class features.

Innovative Wi-Fi 7 with 6 GHz for a strong Mesh home network

Wi-Fi 7 is ideal for households with many wireless devices. Along with the 2.4-GHz and 5-GHz bands, the new 6-GHz band brings additional capacity for even more speed and less interference – optimal for streaming, cloud applications, or gaming. Thanks to Multi-Link Operation (MLO), devices transmit concurrently over multiple bands while Puncturing selectively filters out interference. The results are maximum speed, high stability, and reliable performance in the entire Mesh home network. The FRITZ!Box 6690 Pro achieves Wi-Fi speeds of up to 5760 Mbit/s (6 GHz), 5760 Mbit/s (5 GHz) and 688 Mbit/s (2.4 GHz).

Smart home with DECT and Zigbee

The FRITZ! Smart Home integrates sensors, actuators, and radiator controls simply and centrally via the FRITZ!Box 6690 Pro. In addition to DECT, the FRITZ!Box also supports Zigbee. This allows many smart home devices to be integrated directly and without an additional manufacturer-specific bridge. For example, a Zigbee motion sensor can switch a FRITZ!Smart Energy smart plug connected via DECT ULE. Scenarios such as ‘Leaving the House’ or seasonal lighting can be configured centrally and controlled conveniently.

DOCSIS 3.1 for up to 6 Gbit/s
Tri-band Wi-Fi 7up to 5760 Mbit/s (6 GHz, 2 x 2), 5760 Mbit/s (5 GHz, 4 x 4), 688 Mbit/s (2.4 GHz, 2 x 2)
Smart homefor DECT and Zigbee devices
Intelligent Mesh Wi-Fifor the home or office network
Phone systemwith DECT base station for cordless telephony
FRITZ!OScable TV, NAS, MyFRITZ!, auto updates

Technical specifications

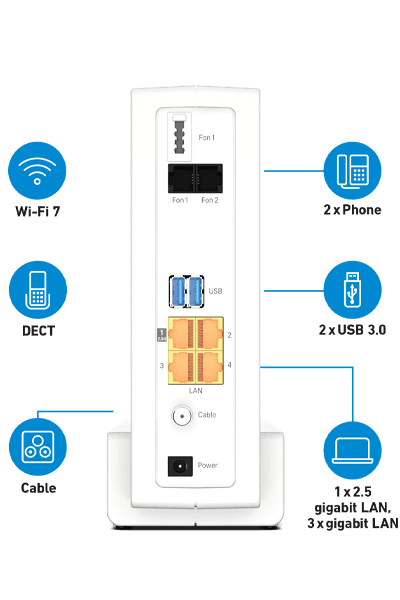

Interfaces

  • 1 x cable (DOCSIS 3.1, backward-compatible with EuroDOCSIS 3.0)
  • 1 x 2.5-gigabit LAN
  • 3 x gigabit LAN
  • Wi-Fi 7
  • DECT base station for cordless phones and smart home
  • Zigbee base station for smart home
  • 2 x connections (2 x RJ11, 1 x (optional) TAE) for analogue phone, answering machine or fax
  • 2 x USB 3.0 port for printers and storage media

Wi-Fi

  • Tri-band Wi-Fi 7: 5760 Mbit/s (6 GHz, 2 x 2), 5760 Mbit/s (5 GHz, 4 x 4), 688 Mbit/s (2.4 GHz, 2 x 2)
  • Extend the home network with Mesh Wi-Fi – simply combine several wireless access points into one intelligent system
  • Compatible with all Wi-Fi standards: IEEE 802.11a/g/n/ac/ax/be
  • Wi-Fi encryption with WPA3/WPA2
  • WPS (Wi-Fi Protected Setup)
  • Wi-Fi can be turned on/off via button or connected phones
  • Wi-Fi guest access – secure surfing for friends and visitors

Telephony

  • Phone system for the cable connection
  • Integrated DECT base station for up to six cordless phones
  • Port for up to 2 analogue phones, fax, or answering machine (TAE or RJ11)
  • Five integrated answering machines featuring voice-to-mail
  • Manage phone contacts locally or online (Google, Apple, and Telekom)
  • Fax function with fax-to-mail
  • Call lists, call block settings, quick-dial numbers, call diversion
  • Dialling rules for individualised use of phone numbers
  • Registration of IP phones (LAN/Wi-Fi) SIP-compliant
  • Telephony app (Wi-Fi) for Apple iOS and Google Android

Cable / internet

  • Wireless router with integrated cable modem compliant with DOCSIS 3.1 transmission standard (backward-compatible with EuroDOCSIS 3.0)
  • 1 x 2.5-gigabit LAN and 3 x gigabit LAN
  • MyFRITZ! – access your FRITZ!Box securely, no matter where you are
  • Stateful Packet Inspection firewall with port sharing for secure surfing
  • Comprehensive parental controls
  • Complete IPv6 support
  • Secure remote access over the internet with VPN (IPSec)
  • Easy to configure and operate with the MyFRITZ!App. Alternatively in the browser-based interface with a PC, smartphone, or tablet
  • Security wizard with diagnostic tool and auto updates

Smart home / media

  • Smart home features for energy, heating, and lighting
  • Integrates LED lights and other devices via Zigbee
  • Transmits four free-to-air digital TV channels simultaneously from the cable connection to PC, smartphone, and tablet
  • 2 x USB port for printers and storage media in the network (USB 3.0)
  • FRITZ!NAS: Store all data centrally in the home network
  • Media server distributes music, photos, and videos in the home network (DLNA/UPnP AV)
  • Also supports online storage, internet radio, and podcasts
  • Simply and securely share files with friends and family

FRITZ!OS

  • Intuitive browser- and app-based user interface
  • Free FRITZ!Apps for your smartphone MyFRITZ!App, FRITZ!App Smart Home, FRITZ!App Fon, FRITZ!App Wi-Fi, FRITZ!App TV
  • Context-sensitive online help
  • Push service mails for events in the home network
  • Security functions with diagnostic tool, auto-updates, firewall, and filter functions
  • Free updates with new functions and optimizations
