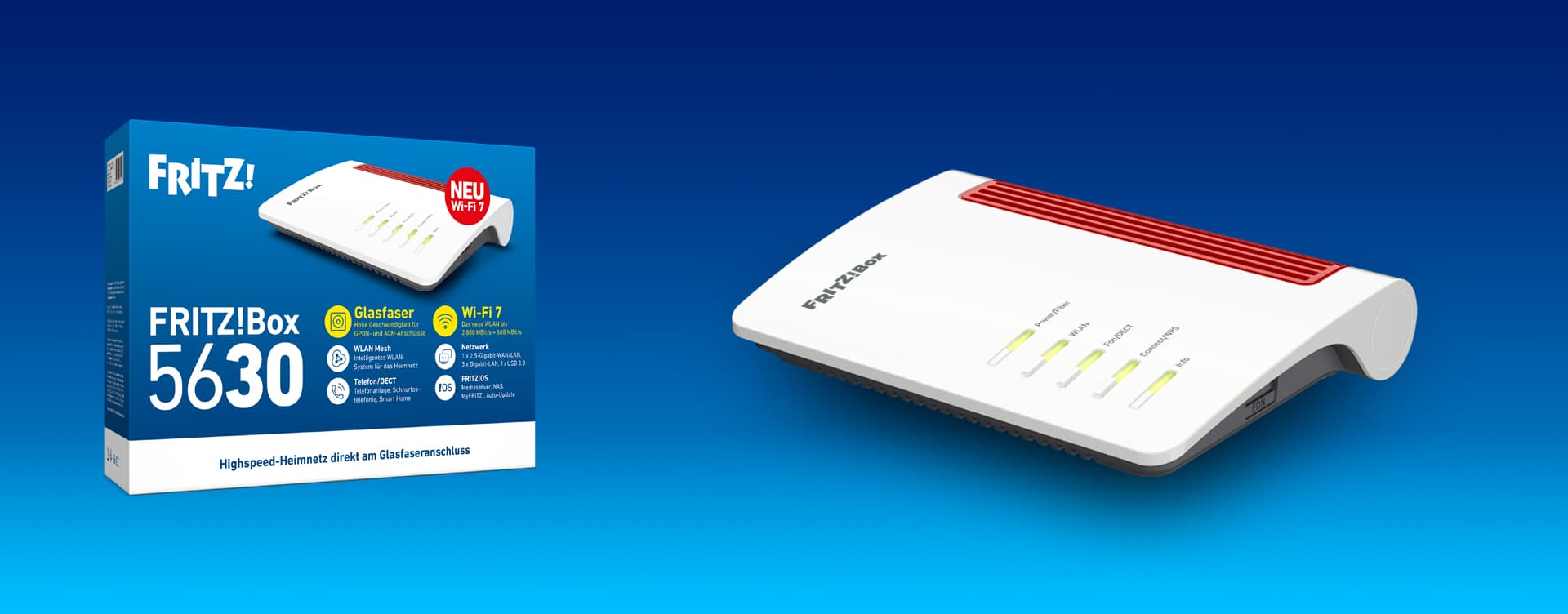

FRITZ!Box 5630
High-speed home network directly on the fiber optic connection
The FRITZ!Box 5630 Edition International is the new entry-level model for use directly on a fiber optic connection via AON/GPON. Equipped with Wi-Fi 7 for up to 3.5 Gbit/s, one 2.5-Gbit/s WAN/LAN port and three Gigabit LAN ports, the FRITZ!Box 5630 is the ideal solution for a future-proof home network. Easy operation with FRITZ!Apps, and comprehensive functions like VPN, smart home integration, and telephony offer additional convenience.
Runs directly on the fiber optic connection and offers a wide range of WAN options
The FRITZ!Box 5630 offers direct fiber optic access via AON and GPON. Getting started is easy: simply connect, then configure conveniently via the app or the FRITZ!Box user interface. An additional SFP module is not required. It is also possible to connect to an existing modem or ONT via the 2.5-gigabit WAN port. Optionally, the 2.5-Gbit/s WAN port can also be configured as an additional LAN port.
Always online thanks to the new FRITZ! Failsafe failover protection
The FRITZ!Box 5630 ensures an uninterrupted internet connection. In the event of instability or failure of the fiber optic connection, it switches automatically to a failover connection – either by means of a second FRITZ!Box via WAN/LAN or by means of a mobile dongle via USB. This feature is available with FRITZ!OS 8.20 or later and is ideal for anyone who depends on a reliable internet connection, whether when working from home, in a retail store, or in an office environment.
Mesh Wi-Fi – The intelligent system for the home network
The FRITZ!Box 5630 supports Mesh Wi-Fi, ensuring that your videos, music, and photos seamlessly reach every last corner of your home network. FRITZ!Repeaters, FRITZ!Powerlines or other FRITZ!Box models adopt the settings from the FRITZ!Box at the internet connection. This way all devices are always optimally connected – automatically and reliably.
Smart home, convenient telephony, and multimedia included
The FRITZ!Box 5630 is more than a router: It also serves as a smart hub for light, heating, and electricity. A range of intelligent devices such as smart plugs and radiator controls from FRITZ!, as well as devices from other manufacturers, can be easily connected. The phone system supports one analogue phone and up to six DECT phones. A multimedia server for videos, music, and photos rounds off this impressive package.
Fiber Optics High Speed for GPON and AON Connections
Wi-Fi 7up to 2,800 Mbit/s + 688 Mbit/s
Wi-Fi MeshSmart Wi-Fi system for home or office networks
Network1 x 2.5 Gigabit WAN/LAN
3 x Gigabit LAN, 1 x USB 3.0
Phone/DECTPhone System, Cordless Phones, Smart Home
FRITZ!OSMediaserver, NAS, MyFRITZ!, Auto-Update
Technical Specifications

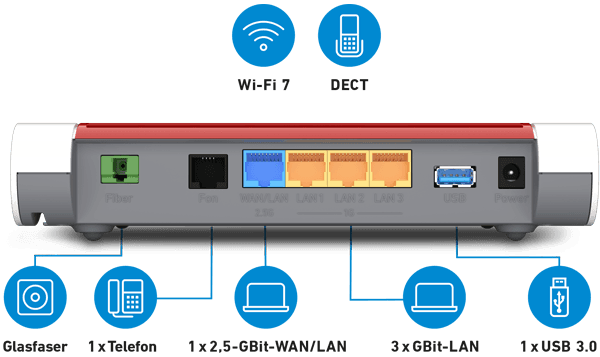

Interfaces
- 1 x fibre optic connection (LC/APC) for direct connection to AON or GPON networks
- 1 x 2.5-gigabit WAN/LAN
- 3 x gigabit LAN
- Wi-Fi 7
- DECT base station for cordless phones and smart home
- One jack for analogue phone, answering machine, or fax
- 1 x USB 3.0 port for storage media and printers
Wi-Fi
- Wi-Fi 7 at up to 2880 Mbit/s (5 GHz) and 688 Mbit/s (2.4 GHz)
- Mesh Wi-Fi – simply combine FRITZ! devices into one intelligent system and extend the home network
- Compatible with the IEEE 802.11a/g/n/ac/ax/be Wi-Fi standards
- Wi-Fi encryption with WPA3/WPA2
- Wi-Fi Protected Setup (WPS)
- Wi-Fi can be turned on/off via button or phone
- Wi-Fi guest access
Telephony
- Phone system for IP-based connections
- Integrated DECT base station for up to six cordless phones
- Connection for an analogue phone, answering machine, or fax
- Five integrated answering machines featuring voice-to-mail
- Manage phone contacts locally or online (Google, Apple, and Telekom)
- Fax function with fax-to-mail
- Call lists, call block settings, quick-dial numbers, extensions
- Internet telephony (VoIP) with FRITZ!App Fon for iOS and Android
Fiber optic/network
- Wi-Fi router for AON and GPON connections (SC/APC)
- Can also connect to a fiber optic modem (ONT)
- Router operation also possible with a mobile broadband dongle
- 1 x 2.5-gigabit WAN/LAN, 3 x gigabit LAN, 1 x USB 3.0
- Ideal for internet, streaming and gaming
- MyFRITZ! – secure access to your own FRITZ!Box from anywhere
- Stateful Packet Inspection firewall with port sharing for secure surfing
- Comprehensive parental controls
- Complete support for IPv6 for internet, home network, and telephony
- Secure remote access over the internet with VPN (IPSec and WireGuard)
- Simple setup in the browser-based interface with a PC, smartphone or tablet
- Security wizard with diagnostic tool and automatic updates
Smart Home / Media
- Smart home features for energy, heating, and lighting (DECT ULE)
- 1 x USB socket for printers and storage media in the network (USB 3.0)
- FRITZ!NAS: Central storage for all data in the home network
- Simply and securely share files with friends and family
- Media server distributes music, photos, and videos in the home
FRITZ!OS
- Intuitive browser- and app-based user interface
- Free FRITZ!Apps for smartphones: MyFRITZ!App, FRITZ!App Smart Home, FRITZ!App Fon, FRITZ!App WLAN, FRITZ!App TV
- Context-sensitive online help
- Push service emails about events on your home network
- Security features including a diagnostic tool, auto-update, firewall, and filtering functions
- Free updates with new features and optimizations
Product information
- Product name:
FRITZ!Box 5630 Edition International - Article number: 20003162
- EAN: 4023125031625
- Product weight: 583 g
- Product dimensions (W x H x D):
8 x 150 x 37 mm - Total product weight: 773 g
- Dimensions of box (W x H x D):
260 x 183 x 68 mm - Country of origin: Poland
Package contents
FRITZ!Box 5630 Edition International
Power adapter
Fiber optic cable
(SC/APC – SC/APC), 4 mLAN cable, 1.5 m
Quick guide in DE, EN, ES, FR, IT, NL
FRITZ! Notes
Downloads
- Data Sheet EN (PDF)
- Manual (PDF)
- Quick Start Guide (PDF) coming soon
- Service Card (PDF) coming soon
- CE Declaration EN (PDF) coming soon
- Data Regulation (PDF) coming soon
